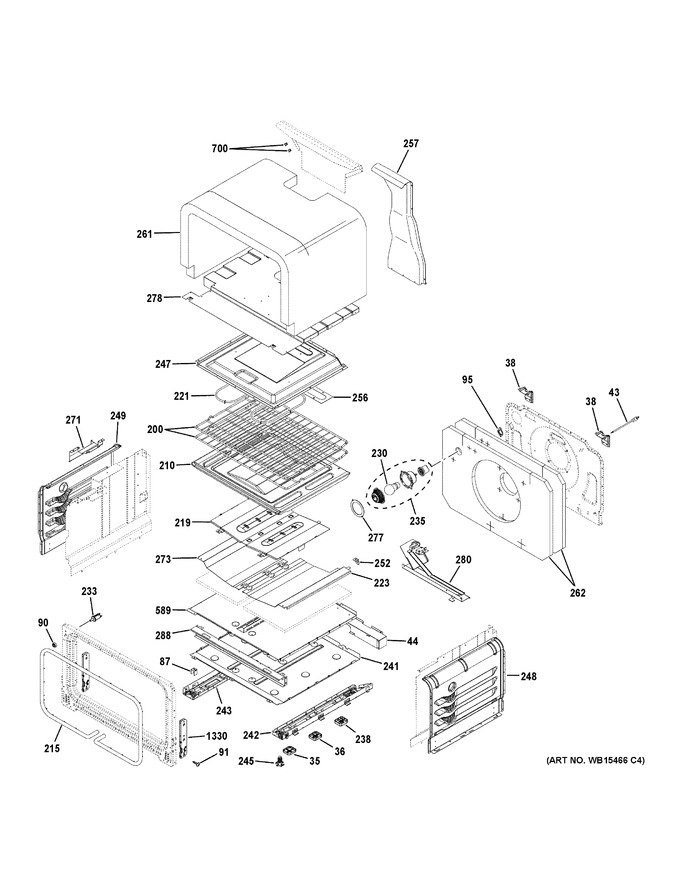

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	WB16X20448		Spacer Base Front		Appelez-nous	-
36	WB16X20450		Spacer Base		Appelez-nous	-
38	WB02X20519		Bracket Cavity		Appelez-nous	-
43	WB24X25557		Sensor Asm		Appelez-nous	-
44	WB34X20526		Cover Shutter		Appelez-nous	-
87	WB56X20457		Barrier Bottom Floor		Appelez-nous	-
90	WB02X28738		Frame Front Bumper		Appelez-nous	-
91	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.97
95	WB02K10337		Cover Cap		Appelez-nous	-
200	WS01L10463		Oven Rack   (Replaces: WB48X20249)			Immediately	$ 95.11
210	WB34X24912		Bottom Oven		Appelez-nous	-
215	WB32X29538		Gasket Oven Lower Cavity		Appelez-nous	-
219	WB34X20440		Deflector Oven		Appelez-nous	-
221	WB44K10034		Asm Element Broil		Appelez-nous	-
223	WB34X20444		Oven Deflector		Appelez-nous	-
230	WB08T10022		Lamp Appliance		Appelez-nous	-
233	WB24X27550		Plunger Switch		Appelez-nous	-
235	WG02F01227		Oven Lamp Holder Asm   (Replaces: WB08T10002)				$ 63.60
238	WB16X20449		Spacer Base Rear		Appelez-nous	-
241	WB63X20441		Bottom Range		Appelez-nous	-
242	WB63X25481		Support Base Rt		Appelez-nous	-
243	WB63X25480		Support Base Lt		Appelez-nous	-
245	WS01L05470		Leg Leveler   (Replaces: WB02K10182)			Immediately	$ 3.97
247	WB53K10039		Oven Top		Appelez-nous	-
248	WB53K10041		Oven Side		Appelez-nous	-
249	WB63X20427		Side Oven		Appelez-nous	-
252	WB2K3		Angle Support		Appelez-nous	-
256	WB32K1		Gasket Vent		Appelez-nous	-
257	WB34X20439		Vent Lower Asm		Appelez-nous	-
261	WB35X24928		Insulation Oven Wrap		Appelez-nous	-
262	WB35X24984		Insulation Assembly		Appelez-nous	-
271	WB34X21619		Cover Latch		Appelez-nous	-
273	WB34X20443		Oven Deflector		Appelez-nous	-
277	WS01L07527		Gasket Oven Light   (Replaces: WB32K10044)				$ 3.97
278	WB53K10047		Guard Top Insulation		Appelez-nous	-
280	WB10X20570		Latch Automatic		Appelez-nous	-
288	WB02X20414		Brace		Appelez-nous	-
589	WB63X21725		Bottom Duct		Appelez-nous	-
700	WB1K21		Screw		Appelez-nous	-
1330	WB10X28563		Receiver Hinge		Appelez-nous	-
