SELECT A DIAGRAM

Body Parts


Control Panel & Cooktop


Convection Fan


Gas & Burner Parts


Lower Door


Lower Oven


Upper Door


Upper Oven

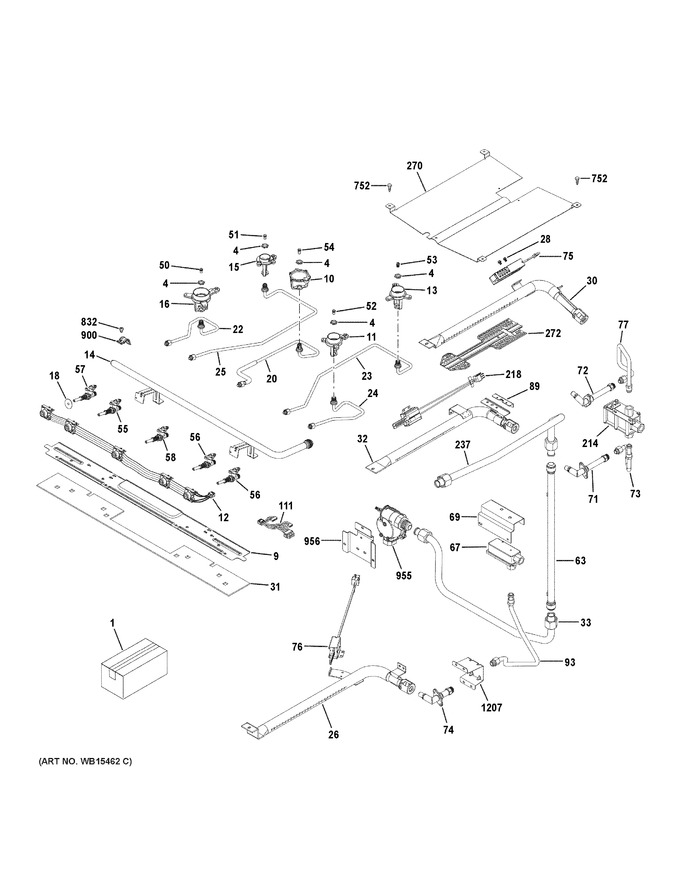

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-10995		Lp Conversion Inst		Appelez-nous	-
1	WB28X24929		Kit Lp Conversion Asm		Appelez-nous	-
1	WB49X25442		Lp Kit High Altitude Asm		Appelez-nous	-
1	31-11005		Pm Install Instructions		Appelez-nous	-
1	49-85226		Pm Gas Quick Guide		Appelez-nous	-
1	WG02A00015		Cleaner-ss   (Replaces: WB02T10111)				$ 23.22
1	WB49X25441		Ng Kit High Altitude Asm		Appelez-nous	-
1	WB28X29255		Kit Lp High Altitude Asm		Appelez-nous	-
1	WB49X26121		Kit Butane Conversion Asm		Appelez-nous	-
1	WB28X29254		Kit Ng High Altitude Asm		Appelez-nous	-
1	WB49X26122		Kit Nat Conversion Asm		Appelez-nous	-
1	31-17182		Pm Mini Manual		Appelez-nous	-
1	WB49X26120		Kit Cooktop Bumper Asm		Appelez-nous	-
4	WS01A01130		Economic Nut   (Replaces: WB01K10037)			Immediately	$ 16.28
9	WB02K10272		Manifold Support		Appelez-nous	-
10	WS01A00976		Ckt Bracket Small   (Replaces: WB02K10360)				$ 11.42
11	WB02X24727		Injet, Medium V2		Appelez-nous	-
12	WB18X27597		Harness Switch		Appelez-nous	-
13	WB02X24726		Injet, Large V2		Appelez-nous	-
14	WB28X24932		Manifold Pipe		Appelez-nous	-
15	WB02X24728		Injet, Small V2		Appelez-nous	-
16	WB02X24725		Injet, Xl V2		Appelez-nous	-
18	WB2K24		Cover Valve		Appelez-nous	-
20	WB28X25632		Orifice Holder		Appelez-nous	-
22	WB28X24761		Orifice Holder Rf		Appelez-nous	-
23	WB28X24764		Orifice Holder		Appelez-nous	-
24	WB28X24766		Orifice Holder Rf		Appelez-nous	-
25	WB28X24763		Orifice Holder		Appelez-nous	-
26	WB16X20606		Burner Bake		Appelez-nous	-
28	WB1K50		Screw Mtg Igniter		Appelez-nous	-
30	WB16K10072		Burner Broil		Appelez-nous	-
31	WB35X24985		Insulation Burner Box		Appelez-nous	-
32	WB16K10074		Burner Bake		Appelez-nous	-
33	WB28X24405		Tube Regulator		Appelez-nous	-
50	WB28X24768		Orifice Spud		Appelez-nous	-
51	WS01F01338		Orifice Spud Lp   (Replaces: WB28K10834)			Immediately	$ 3.97
52	WS01F01389		Orifice-lp 89mm   (Replaces: WB28K10023)				$ 3.97
53	WS01F01390		Orifice-lp Lg 99mm   (Replaces: WB28K10032)				$ 12.71
54	WS01F01422		Orifice Spud Lp 86l   (Replaces: WB28K10215)				$ 12.71
55	WS01F05939		Valve Burner 270   (Replaces: WB21X20261)				$ 57.25
56	WS01F05938		Valve Burner 270   (Replaces: WB21X20260)			Immediately	$ 22.53
57	WB21X20262		Valve Burner 270		Appelez-nous	-
58	WB21X20394		Valve Burner 270		Appelez-nous	-
63	WB28X24933		Multitube Supply		Appelez-nous	-
67	WB21X20475		Safety Valve Single		Appelez-nous	-
69	WB02K10325		Support Valve Single		Appelez-nous	-
71	WB28X20619		Elbow 90 Asm		Appelez-nous	-
72	WB28X20787		Elbow 90 Asm		Appelez-nous	-
73	WB28X20758		Tube Upper Bake Supply		Appelez-nous	-
74	WB28X20451		Elbow 90 Asm		Appelez-nous	-
75	WB13X24925		Igniter Glowbar		Appelez-nous	-
76	WB13X25633		Igniter Glowbar		Appelez-nous	-
77	WB28X20468		Tube Valve Safety		Appelez-nous	-
89	WB02K10326		L Support		Appelez-nous	-
93	WB28X20757		Tube Lower Bake Supply		Appelez-nous	-
111	WB18X26985		Electrodes & Harness H.v.		Appelez-nous	-
214	WB21X20474		Safety Valve Dual		Appelez-nous	-
218	WB13X24924		Igniter Glowbar		Appelez-nous	-
237	WB28X24937		Tube Manifold Supply		Appelez-nous	-
270	WB63X25991		Deflector		Appelez-nous	-
272	WB34X20303		Shield Broil		Appelez-nous	-
752	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
832	WB01K10080		Screw Thermostat		Appelez-nous	-
900	WB02K10297		Bracket Valve		Appelez-nous	-
955	WB21X20795		Pressure Regulator		Appelez-nous	-
956	WB02X21705		Support Regulator		Appelez-nous	-
999	31-10995		Lp Conversion Inst		Appelez-nous	-
999	WG02A00015		Cleaner-ss   (Replaces: WB02T10111)				$ 23.22
999	49-85226		Pm Gas Quick Guide		Appelez-nous	-
999	31-17182		Pm Mini Manual		Appelez-nous	-
999	31-11005		Pm Install Instructions		Appelez-nous	-
1207	WB02X21734		Bracket Pipe		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
