SELECT A DIAGRAM
New Model Search:

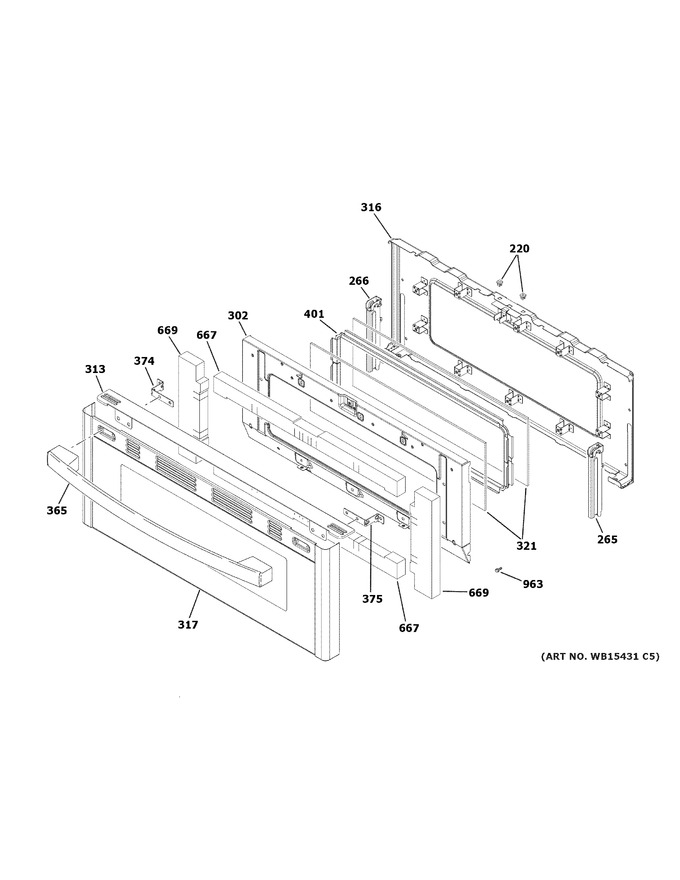

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 91 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.97 | ||||
| 220 | WB2K8 | Grommet |
|
- | |||||
| 265 | WB10X29635 | Receiver Hinge Rh |
|
- | |||||
| 266 | WB10X29636 | Receiver Hinge Lh |
|
- | |||||
| 302 | WB35X21704 | Guard Insulation |
|
- | |||||
| 313 | WB07X29140 | Cover Vent Trim Dd |
|
- | |||||
| 316 | WB34X28839 | Liner Door Assembly |
|
- | |||||
| 317 | WB56X24969 | Glass Door Asm |
|
- | |||||
| 321 | WB57K10156 | Crystal Window |
|
- | |||||
| 361 | WB01X32512 | Screw 10-24 |
|
- | |||||
| 365 | WB15X35050 | Stainless Steel Handle |
|
- | |||||
| 374 | WB02X24913 | Bracket Handle |
|
- | |||||
| 375 | WB02X24914 | Bracket Handle |
|
- | |||||
| 401 | WB34X28740 | Frame Window Assy |
|
- | |||||
| 667 | WB34X21730 | Insulation Door |
|
- | |||||
| 669 | WB34X21729 | Insulation Door |
|
- | |||||
| 963 | WB01K10116 | Scr 10-16 Ab Trw20 1/2 |
|
- |
