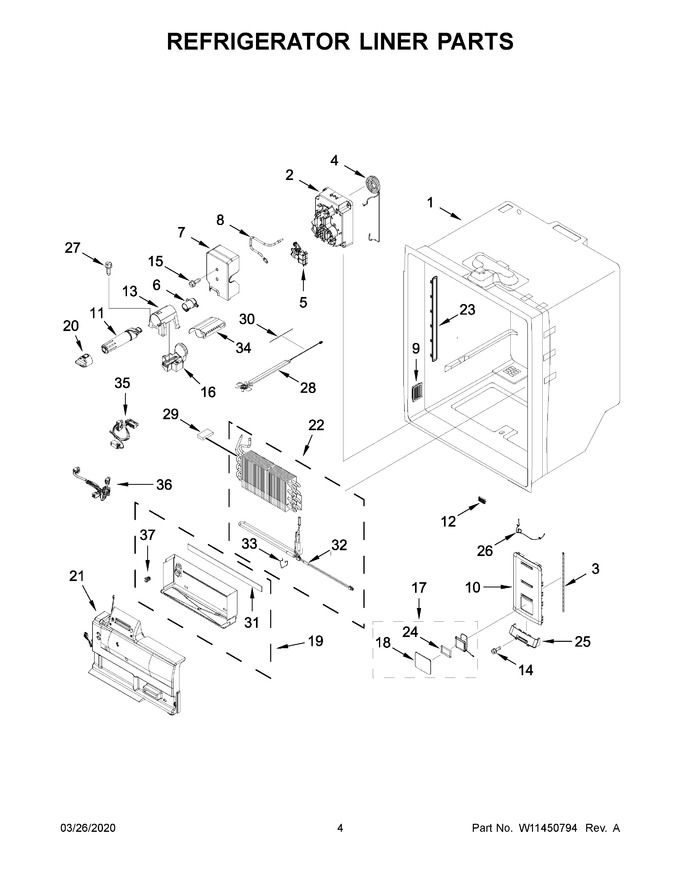

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10708473 | Housing, Water Tank |
|
$ 107.56 | |||||
| 3 | W10890848 | Strip, Led (Replaces: W10881217) |
|
Immediately | $ 219.88 | ||||
| 4 | W11451365 | Reservoir, Water (includes Filter Heater, Wire Ties, And Sealing Gaskets) |
|
Immediately | $ 194.94 | ||||
| 5 | W11535162 | Valve, Dual Water (Replaces: W10908836) |
|
Immediately | $ 140.71 | ||||
| 6 | W11451366 | Housing, Water Filter (includes Filter Heater And Sealing Gaskets) |
|
Immediately | $ 140.83 | ||||
| 7 | W10900012 | Cover, Water Valve |
|
$ 117.57 | |||||
| 8 | W11727946 | Tube, Water Filter (Replaces: W11330625) |
|
Immediately | $ 80.61 | ||||
| 9 | W10815961 | Cover, Cooling Duct |
|
$ 110.44 | |||||
| 10 | W11259419 | Cover, Air Tower |
|
$ 187.04 | |||||
| 11 | EDR2RXD1B | Filter, Water (Replaces: W10680605) |
|
Immediately | $ 49.99 | ||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 13 | W11189600 | Bracket, Filter (Replaces: W10708474) |
|
$ 74.42 | |||||
| 14 | W10119266 | Screw |
|
$ 12.71 | |||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 16 | W11348541 | Insulation, Under Filter |
|
$ 35.44 | |||||
| 17 | W11302423 | Light Assy, Air Filter |
|
$ 54.68 | |||||
| 18 | W11302423 | Cover, Air Filter (Replaces: W11306609) |
|
$ 54.68 | |||||
| 19 | W11090564 | Assembly, Heat Shield |
|
$ 70.51 | |||||
| 20 | W11679634 | Cap, Water Filter (grey) (Replaces: W10813884) |
|
Immediately | $ 15.08 | ||||
| 21 | W11395641 | Assembly, Evaporator Cover (includes Fan Motor, Wire Assembly And Thermistor) (Replaces: W11327988) |
|
Immediately | $ 468.70 | ||||
| 22 | W11291123 | Assembly, Evaporator (Replaces: W11130330) |
|
Immediately | $ 366.49 | ||||
| 23 | W11649968 | Strip, Led (Replaces: W11381924) |
|
Immediately | $ 147.19 | ||||
| 24 | W10673897 | Insulator, Foam (Replaces: W10831305) |
|
$ 32.53 | |||||
| 25 | W11024146 | Base, Tower Cover (Replaces: W10913535) |
|
- | |||||
| 26 | W10848895 | Harness, Air Tower Jumper |
|
Immediately | $ 158.50 | ||||
| 27 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 8.55 | ||||
| 28 | W11024084 | Heater, Filter (Replaces: W10877761) |
|
Immediately | $ 140.89 | ||||
| 29 | W10818463 | Gasket, Evaporator Air Dam |
|
$ 27.75 | |||||
| 30 | W10910632 | Gasket, Sealing (Replaces: W10901792) |
|
- | |||||
| 31 | W11159756 | Gasket, Heat Shield (Replaces: W10921470) |
|
- | |||||
| 32 | W11291124 | Heater, Defrost (Replaces: W11127384) |
|
Immediately | $ 158.89 | ||||
| 33 | W10909562 | Clip, Evaporator Heater |
|
$ 24.54 | |||||
| 34 | W11307147 | Cover, Filter |
|
$ 103.10 | |||||
| 35 | W10911358 | Assembly, Evaporator Jumper Wire |
|
$ 136.12 | |||||
| 36 | W11396537 | Assembly, Manifold Jumper Wire (Replaces: W10906507) |
|
$ 132.15 | |||||
| 37 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| NI | W10871610 | Assembly, Valve Wire |
|
$ 148.05 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
