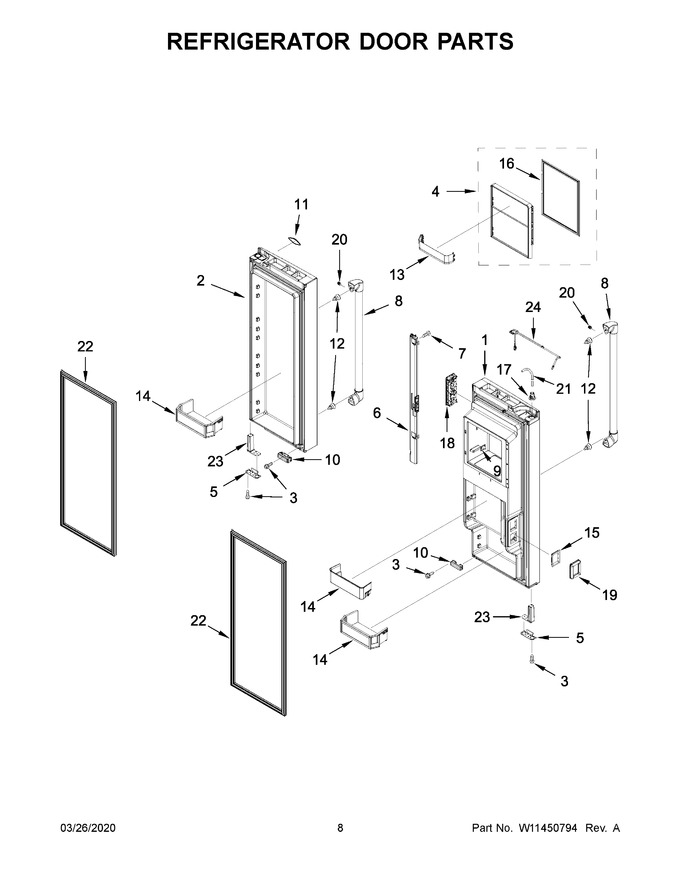

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11466513 | Door, Refrigerator Left Hand (stainless (also Order Item #18)) (Replaces: W11401422) |
|
$ 1,201.50 | |||||
| 2 | W10849511 | Door, Refrigerator Right Hand (stainless) (Replaces: W10798253) |
|
$ 1,306.75 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 4 | W11594926 | Assembly, Ice Door (Replaces: W10798123) |
|
$ 177.58 | |||||
| 5 | W11243377 | Bracket, Door Stop (Replaces: W10763415) |
|
Immediately | $ 76.11 | ||||
| 6 | W11649966 | Mullion, Door (grey) (Replaces: W11034034) |
|
$ 141.79 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11254134 | Handle, Door (stainless) (Replaces: W11238822) |
|
$ 407.26 | |||||
| 9 | W11291140 | Switch, Rocker Arm (Replaces: W11202750) |
|
- | |||||
| 10 | W10798308 | Bumper, Door (grey) |
|
$ 26.97 | |||||
| 11 | WPW10214168 | Nameplate (stainless) (Replaces: W10214168) |
|
$ 85.95 | |||||
| 12 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.95 | ||||
| 13 | W10887799 | Trivet, Ice Compartment Door (Replaces: W10795606) |
|
Immediately | $ 106.65 | ||||
| 14 | W10816355 | Bin, Door (medium) |
|
Immediately | $ 118.56 | ||||
| 15 | W10834283 | Retainer, Door Duct |
|
$ 35.68 | |||||
| 16 | W11714865 | Gasket, Ice Door (Replaces: W10853440) |
|
$ 107.51 | |||||
| 17 | W11315303 | Clip, Tube |
|
- | |||||
| 18 | W11262313 | Assembly, User Interface (Replaces: W11227909) |
|
Immediately | $ 347.84 | ||||
| 19 | W10828417 | Gasket, Cooling Duct |
|
$ 29.26 | |||||
| 20 | W10907991 | Screw, Set (Replaces: W10693137) |
|
$ 7.55 | |||||
| 21 | W11518276 | Tube, Water (Replaces: W11391308) |
|
$ 92.79 | |||||
| 22 | W10917313 | Gasket, Door (grey) |
|
Immediately | $ 196.76 | ||||
| 23 | W11179355 | Closer, Door (left Hand) (Replaces: W10872968) |
|
$ 26.06 | |||||
| 24 | W11596134 | Assembly, Fill Tube (icemaker) (Replaces: W11401679) |
|
$ 97.56 | |||||
| 14A | W10793381 | Bin, Door (gallon) |
|
$ 371.28 | |||||
| 23A | W11189598 | Closer, Door (right Hand) (Replaces: W10872969) |
|
$ 26.06 |
