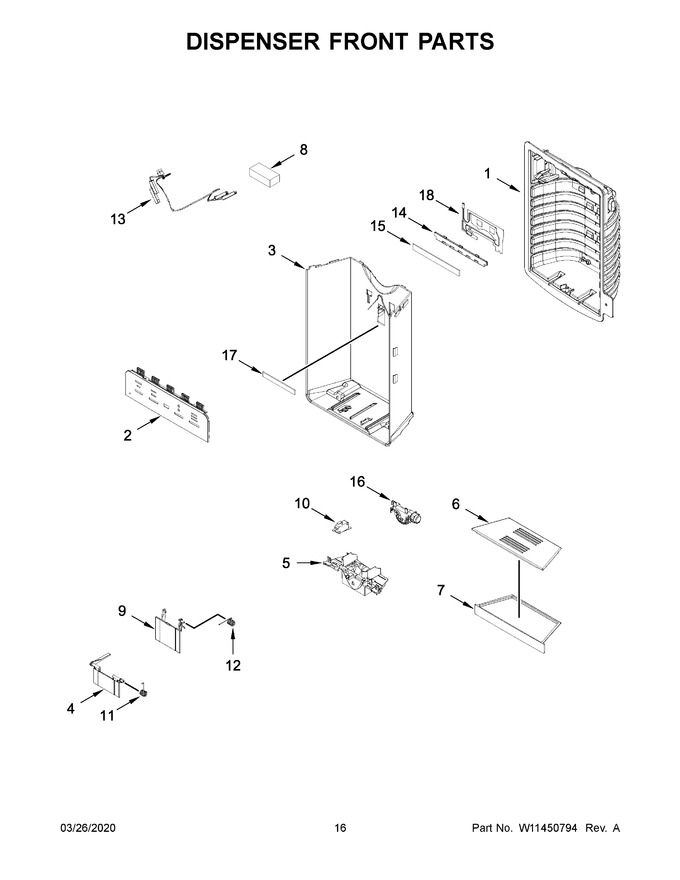

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11533211 | Assembly, User Interface (Replaces: W11365808) |
|
Immediately | $ 634.60 | ||||
| 3 | W10792144 | Wall, Dispenser False (grey) |
|
$ 199.25 | |||||
| 4 | W11679631 | Paddle, Water Dispenser (chrome) (Replaces: W10792148) |
|
$ 66.57 | |||||
| 5 | W11048097 | Seperator (grey) |
|
Immediately | $ 179.79 | ||||
| 6 | W10848267 | Grate, Drip |
|
$ 107.78 | |||||
| 7 | W10905360 | Tray, Drip (grey) |
|
$ 121.51 | |||||
| 8 | W10882291 | Gasket, Foam |
|
$ 27.76 | |||||
| 9 | W10792149 | Paddle, Ice Dispenser (chrome) |
|
Immediately | $ 94.97 | ||||
| 10 | W11087492 | Switch, Limit (Replaces: W10403752) |
|
Immediately | $ 39.29 | ||||
| 11 | W11778261 | Spring, Torsion (Replaces: W10672578) |
|
Immediately | $ 18.00 | ||||
| 12 | W11109505 | Spring, Torsion (Replaces: W10663682) |
|
Immediately | $ 26.03 | ||||
| 13 | W10704135 | Assembly, Paddle Jumper Wire |
|
$ 41.14 | |||||
| 14 | W10757499 | Bracket, User Interface Adapter |
|
$ 72.08 | |||||
| 15 | W10696713 | Gasket, User Interface Adapter |
|
$ 54.93 | |||||
| 16 | W11189145 | Assembly, Ice Door Motor Bracket (Replaces: W10696704) |
|
Immediately | $ 154.56 | ||||
| 17 | W10663699 | Pad, Sound |
|
$ 28.15 | |||||
| 18 | W10752689 | Heater, Dispenser |
|
Immediately | $ 128.09 |
