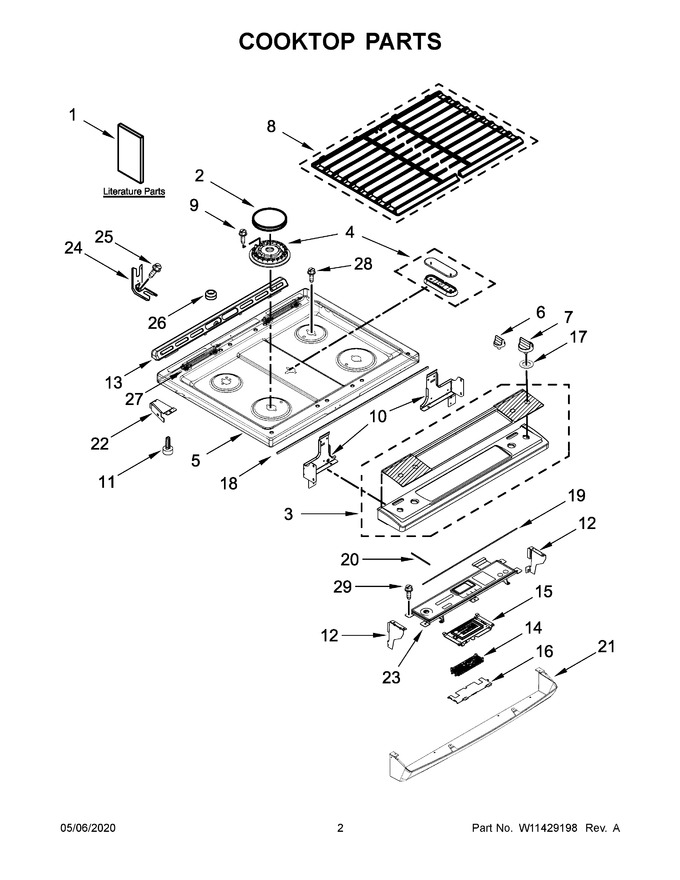

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11399121 | Use And Care Guide |
|
- | |||||
| 2 | W11834859 | Kit, Burner Cap (black) (Replaces: W11352138) |
|
- | |||||
| 3 | W10885068 | Console (stainless) (Replaces: W10842411) |
|
$ 955.42 | |||||
| 4 | W11435630 | Spreader, Flame (left Front & Right Front) (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 5 | W11435855 | Cooktop (includes Hinges) (black) (Replaces: W11411996) |
|
$ 488.78 | |||||
| 6 | W11211501 | Knob (mini) (stainless) (Replaces: W10850039) |
|
Immediately | $ 21.54 | ||||
| 7 | W11517334 | Knob (stainless) (Replaces: W10850033) |
|
Immediately | $ 57.62 | ||||
| 8 | W11435675 | Kit, Grate (black) (Replaces: W11353429) |
|
Immediately | $ 397.11 | ||||
| 9 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 10 | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 11 | W11189172 | Glide, Main Top (Replaces: 8016P022-60) |
|
Immediately | $ 17.61 | ||||
| 12 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 13 | W11256338 | Trim, Vent (black) (Replaces: W10577781) |
|
$ 205.56 | |||||
| 14 | W10885069 | Electronic, Control Mrc2 (Replaces: W10759290) |
|
$ 527.65 | |||||
| 15 | W11122852 | Assembly, Display (Replaces: W10759327) |
|
Immediately | $ 527.64 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 17 | W11131701 | Bushing (black) (Replaces: W10739036) |
|
$ 23.27 | |||||
| 18 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 19 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 21.33 | |||||
| 20 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 22.92 | |||||
| 21 | W11218703 | Console, Lower Panel (black) (Replaces: W10570527) |
|
Immediately | $ 162.27 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 23 | W10728529 | Assembly, Active Overlay (black) (Replaces: W10665503) |
|
$ 311.91 | |||||
| 24 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 25 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 26 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 27 | N/P | Hinge, Grate (not Serviced) |
|
- | |||||
| 28 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 29 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 10A | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 10B | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 12A | W10547961 | Bracket, Console (right) |
|
$ 23.22 | |||||
| 1A | W11399120 | Installation Instructions |
|
- | |||||
| 1B | W10844271 | Tech Sheet |
|
- | |||||
| 1C | W10844275 | Wire Diagram |
|
- | |||||
| 1D | W10400066 | Quick Start Guide (english) |
|
- | |||||
| 1E | W10400067 | Quick Start Guide (french) |
|
- | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 4A | W11435657 | Spreader, Flame (right Rear) (Replaces: W11352021) |
|
$ 84.43 | |||||
| 4B | W11435659 | Spreader, Flame (left Rear) (Replaces: W11352020) |
|
$ 84.85 | |||||
| 4C | W11435660 | Spreader, Flame (center) (Replaces: W11367086) |
|
Immediately | $ 98.56 | ||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W10580229 | Wire, Ground |
|
$ 38.22 | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | W11198972 | Harness, Bake/broil (Replaces: W10754419) |
|
$ 35.84 | |||||
| NI | W10908899 | Harness, Main |
|
$ 235.68 | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 224.96 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 |
