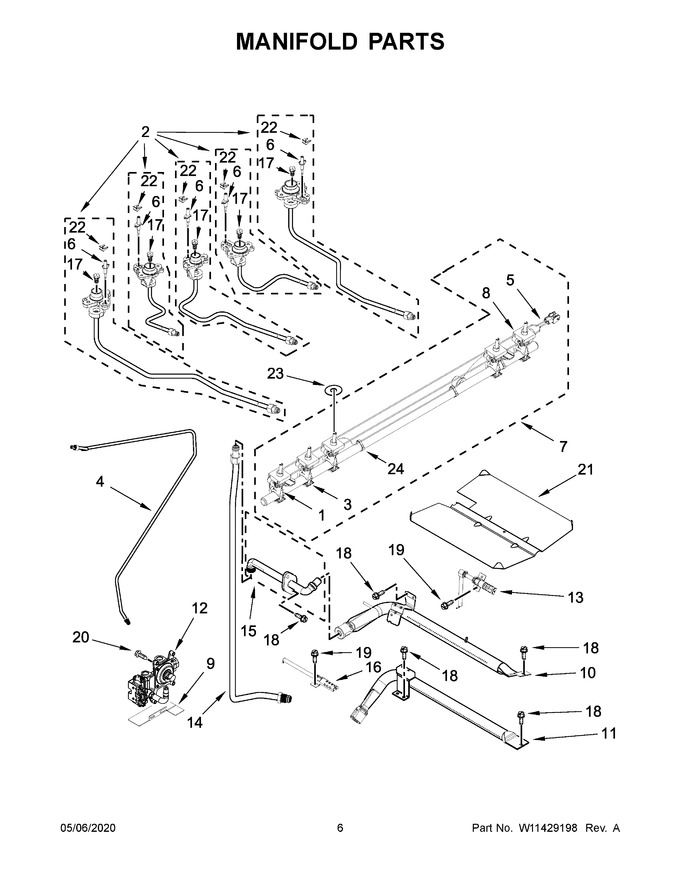

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11666001		Screw   (Replaces: W10246216)				$ 14.28
2	W11186510		Assembly, Orifice (left Front)				$ 111.13
3	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
4	W10552140		Tube, Supply				$ 83.76
5	W11677625		Harness, Spark Switch   (Replaces: W10478601)				$ 78.12
6	W11661929		Electrode, Burner (left Front)   (Replaces: W10669526)			Immediately	$ 50.21
7	W11356350		Assembly, Manifold				$ 320.76
8	W11223016		Valve, Gas (left Front & Right Front)   (Replaces: W10566042)			Immediately	$ 264.72
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 94.98
11	W10764654		Burner, Bake   (Replaces: W10680035)			Immediately	$ 91.65
12	W10861656		Valve, Regulator   (Replaces: W10554066)			Immediately	$ 310.11
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 103.98
14	W10306050		Tube, Broil Supply (broiler Fitting To Valve)				$ 189.82
15	W10583216		Fitting, Broil Burner				$ 95.85
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	W10849722		Orifice (18k) (left Front)		Appelez-nous	-
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	W11684507		Screw   (Replaces: 3196385)				$ 14.27
20	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
21	3601P336-45		Baffle, Broil Burner				$ 227.09
22	W11684564		Clip, Electrode Spring   (Replaces: W10827923)			Immediately	$ 12.65
23	W10140571		Seal, Switch Shaft				$ 7.70
24	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
17A	W11677633		Orifice (5k) (left Rear)   (Replaces: W10849719)				$ 99.15
17B	W10849717		Orifice (15k) (right Front)			Immediately	$ 93.46
17C	W10849714		Orifice (9.5k) (right Rear)				$ 93.46
17D	W10849715		Orifice (8k) (center)		Appelez-nous	-
2A	W11186507		Assembly, Orifice (left Rear)				$ 111.06
2B	W11186523		Assembly, Orifice (right Front)				$ 107.08
2C	W11186519		Assembly, Orifice (right Rear)				$ 107.12
2D	W11186516		Assembly, Orifice (center)				$ 110.94
6A	W11666003		Electrode, Burner (left Rear)   (Replaces: W10669525)				$ 48.41
6B	W11643126		Electrode, Burner (right Front & Center)   (Replaces: W10669524)			Immediately	$ 38.01
6C	W11661897		Electrode, Burner (right Rear)   (Replaces: W10669523)				$ 48.36
8A	W10873136		Valve, Gas (left Rear)   (Replaces: W10831588)				$ 272.65
8B	W11163975		Valve, Gas (right Rear & Center)   (Replaces: W10566050)			Immediately	$ 188.72
NI	W11435676		Kit, Lp Conversion   (Replaces: W11396878)				$ 29.40
NI	W11087486		Kit, Lp Conversion (bake/broil)   (Replaces: W10566535)			Immediately	$ 117.95
