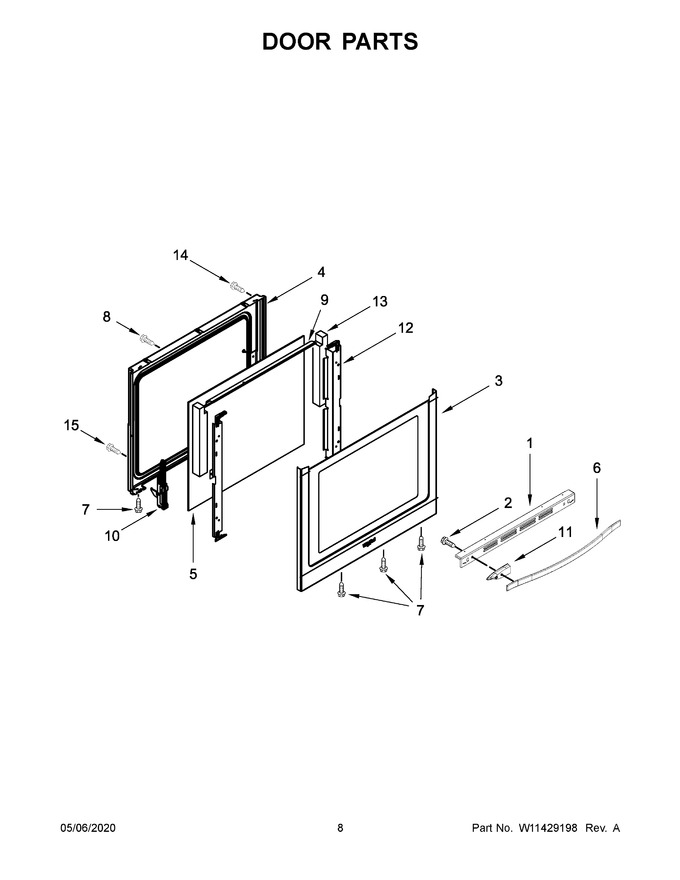

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11205076		Trim, Vent (stainless)   (Replaces: W10842333)				$ 145.34
2	W11396735		Screw   (Replaces: W10426267)				$ 14.75
3	W10909032		Glass, Outer (stainless (includes Skin And Badge))   (Replaces: W10844776)				$ 305.25
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 331.51
5	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 252.42
6	WPW10618239		Handle, Door (stainless)   (Replaces: W10254687)			Immediately	$ 175.54
7	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
8	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
9	W10294853		Bracket, Glass Liner			Immediately	$ 237.04
10	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
11	WPW10410341		Standoff, Handle (black)   (Replaces: W10410341)				$ 80.75
12	W11116956		Rail, Door   (Replaces: W10294851)				$ 133.75
13	W11688565		Insulation, Door   (Replaces: W10772958)				$ 27.02
14	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 8.20
15	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
