SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assy


05 - Deli And Ref Shelf


06 - Evap Fan Assy And Lights


07 - Evaporator Assy And Rollers


08 - Freezer Door


09 - Fz Shelf


10 - Handles And Trim


11 - Hinges


12 - Ice Maker


13 - Light Covers And Toe Grille


14 - Refrigerator Door


15 - Supplemental Information


16 - Wiring Information

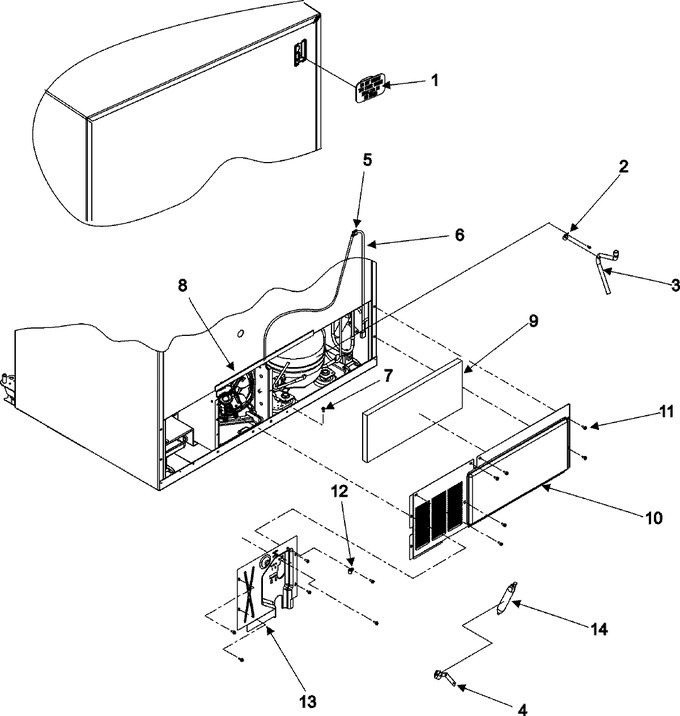

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10544301		Plug, Im Tunnel	10	Appelez-nous	-
2	WP489069		Screw   (Replaces: M0220617)	10		Immediately	$ 8.40
2	M0102303		Clamp	10	Appelez-nous	-
3	12580401		Tube, Drain	10	Appelez-nous	-
4	67002999		Screw, Sm	10	Appelez-nous	-
4	10547002		Clip, Drier	10	Appelez-nous	-
5	WPM0104106		Clip   (Replaces: M0104106)	10			$ 8.17
6	WP67006506		Cord, Power   (Replaces: 12583301)	10			$ 27.74
7	WP489399		Screw, Ca   (Replaces: M0239216)	10			$ 7.30
8	B5759649		Gasket, Mc Back	10	Appelez-nous	-
9	67003796		Fiber, Acoustic	10			$ 19.27
10	12575101ED		Back, Mach Comp	10	Appelez-nous	-
11	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
12	W10833902		Clamp, Tube   (Replaces: M0108105)	10			$ 11.54
12	681390		Screw   (Replaces: M0251015)	10			$ 13.71
13	WPW10139210		Screw, Tc   (Replaces: M0226528)	10			$ 8.03
13	12479803		Cover, Water Valve	10	Appelez-nous	-
14	WPB2150504		Drier   (Replaces: B2150504)	10			$ 136.98

    View Diagram in Separate Window       Print Part List
