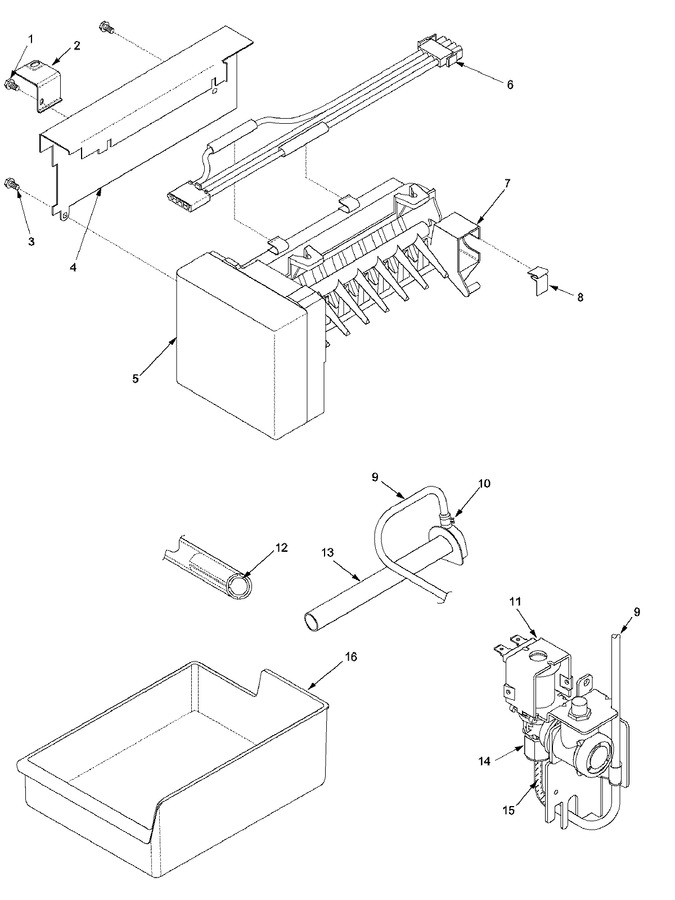

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.82 | ||||
| 2 | WP2256087 | Brkt, Ice Maker (Replaces: 67002823) |
|
$ 93.00 | |||||
| 3 | 67006425 | Screw, Sm (Replaces: M0238642) |
|
Immediately | $ 6.95 | ||||
| 4 | D7846203 | Shield, Ice Maker |
|
- | |||||
| 5 | WPW10289690 | Cover, Ice Maker (Replaces: 67004710) |
|
Immediately | $ 8.40 | ||||
| 6 | WPD7813010 | Harness, Ice Maker Mod (Replaces: D7813004) |
|
Immediately | $ 73.97 | ||||
| 7 | WP67004028 | Arm, I.m. Shut-off (Replaces: 10884401) |
|
Immediately | $ 91.35 | ||||
| 7 | 10244904 | Coupling |
|
$ 25.37 | |||||
| 7 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.00 | |||||
| 7 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 10.99 | |||||
| 7 | D7824706Q | Ice Maker (Replaces: D7824706) |
|
Immediately | $ 167.35 | ||||
| 8 | B5720302 | Clip |
|
- | |||||
| 9 | WPB5705307 | Tubing Plastic (Replaces: B5705308) |
|
$ 12.43 | |||||
| 10 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.05 | |||||
| 11 | W10833899 | Kit, Water Valve (Replaces: R0000214) |
|
Immediately | $ 241.48 | ||||
| 12 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 7.82 | ||||
| 13 | W11176463 | Elbow, Fill Tube (Replaces: 10463201) |
|
Immediately | $ 114.15 | ||||
| 14 | WP627018 | Nut, Sleeve (Replaces: 67003190) |
|
$ 10.97 | |||||
| 15 | A1055105 | Spring, Anti Kink |
|
- | |||||
| 16 | WP67001255 | Pan, Ice (Replaces: 67001255) |
|
$ 203.08 | |||||
| NI | M0311301 | Plug Button |
|
- | |||||
| NI | 10525901 | Harness, Water Valve |
|
$ 8.02 | |||||
| NI | 681390 | Screw (Replaces: M0251015) |
|
$ 13.06 |
