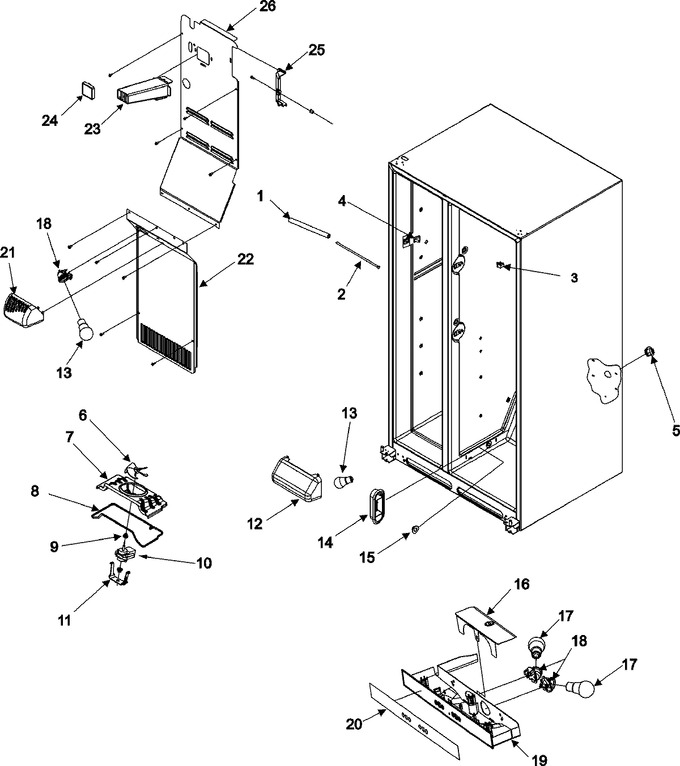

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002219		Insulation, Tubing	10	Appelez-nous	-
2	M0322202		Tie Wire	10	Appelez-nous	-
3	W11291138		Switch, Ref Light   (Replaces: 12466104)	10		Immediately	$ 36.67
4	W11396033		Switch, Light   (Replaces: 12466103)	10		Immediately	$ 37.30
5	W11447232		Socket, Light   (Replaces: Y12570701)	10		Immediately	$ 13.87
6	WP2169142		Fan, Evaporator   (Replaces: 12217201)	10		Immediately	$ 43.41
7	67004253		Shroud, Evap	10	Appelez-nous	-
8	67001508		Gasket	10	Appelez-nous	-
9	WP67002780		Grommet, Fan Motor   (Replaces: 67002780)	10			$ 8.20
10	WPW10128551		Motor, Evap Fan   (Replaces: 67003636)	10		Immediately	$ 78.75
11	WP67005633		Clip   (Replaces: 67003083)	10			$ 8.07
12	67001507		Shield, Crisper Light	10	Appelez-nous	-
13	W11679940		Bulb, Light (40 Watt)   (Replaces: 67003568)	10		Immediately	$ 11.30
14	12634801		Grille, Return Air	10	Appelez-nous	-
15	67003018		Plug, Air Tunnel	10	Appelez-nous	-
16	67004157		Reflector, Light	10	Appelez-nous	-
17	W11679940		Bulb, Light (40 Watt)   (Replaces: 67003568)	10		Immediately	$ 11.30
18	W11447232		Socket, Light   (Replaces: Y12570701)	10		Immediately	$ 13.87
19	67004240		Housing, Fz Control	10	Appelez-nous	-
20	67004327		Overlay, Control	10	Appelez-nous	-
21	67004135		Shield, Fz Light	10	Appelez-nous	-
22	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
22	67004192		Cover, Evap	10	Appelez-nous	-
23	67003581		Duct, Quick Ice	10	Appelez-nous	-
24	D7874403		Cover-fl Tb/plug	10	Appelez-nous	-
25	M0580205		Grommet, Screw	10	Appelez-nous	-
25	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
25	12583101		Cover, Supply Air	10	Appelez-nous	-
26	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
26	67004382		Back, Inner Fz	10	Appelez-nous	-
