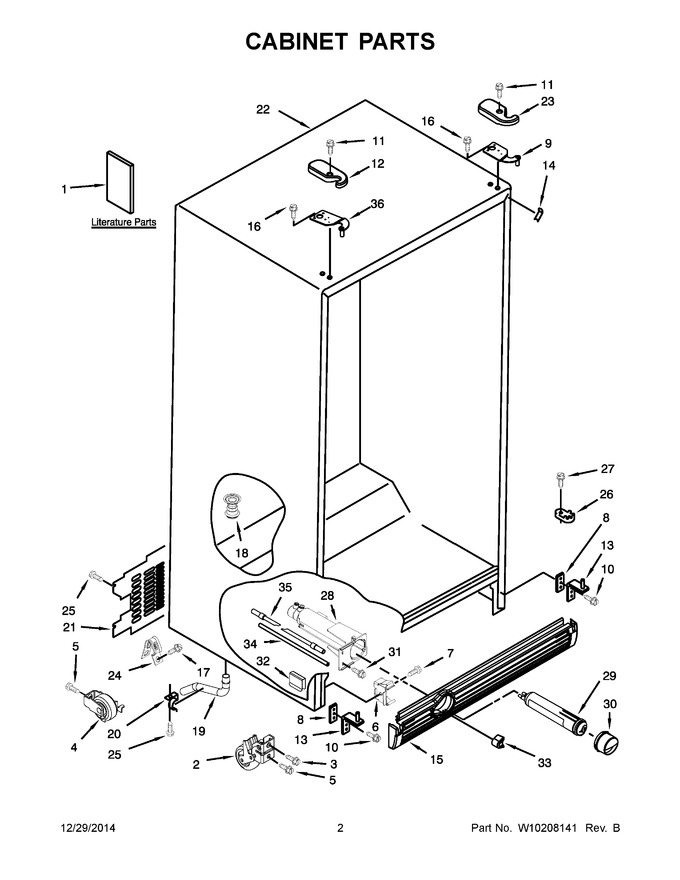

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10194140 | Energy Guide |
|
- | |||||
| 2 | 2174748 | Roller, Front |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Roller, Rear (Replaces: 2196236) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | WP2181911 | Shim, Bottom (Replaces: 2156056) |
|
$ 34.87 | |||||
| 9 | WP2203771 | Hinge, Top (right) (Replaces: 2203771) |
|
$ 103.13 | |||||
| 10 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 11 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 12 | W10138584 | Cover, Hinge (freezer) (grey) |
|
$ 15.17 | |||||
| 13 | 2303141 | Hinge, Bottom (left Hand) |
|
$ 261.00 | |||||
| 14 | W10143043 | Filler, Wrapper (grey) |
|
- | |||||
| 15 | WPW10184890 | Grille (midnight Grey) (Replaces: W10184890) |
|
$ 166.64 | |||||
| 16 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 18 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 19 | W11512417 | Extension, Drain Fitting (Replaces: 2304937) |
|
$ 36.53 | |||||
| 20 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 11.28 | |||||
| 21 | WP2188755 | Cover, Unit (Replaces: 2188739) |
|
$ 142.71 | |||||
| 22 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 23 | W10138579 | Cover, Hinge (refrigerator) (grey) |
|
$ 35.68 | |||||
| 24 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 25 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 26 | WPW10329686 | Closer, Door (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 27 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 | |||||
| 28 | WPW10121138 | Housing, Water Filter (Replaces: 2260507) |
|
Immediately | $ 112.91 | ||||
| 29 | EDR3RXD1B | Filter, Water (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 30 | WP2260518MG | Cap, Water Filter (grey) (Replaces: 2260502MG) |
|
$ 58.83 | |||||
| 31 | WP489500 | Screw (Replaces: 489500) |
|
$ 8.17 | |||||
| 32 | 2260519 | Block, Housing Support |
|
- | |||||
| 33 | 2260503MG | Button, Water Filter (grey) |
|
$ 28.36 | |||||
| 34 | WPW10350006 | Tube, Filter Outlet (Replaces: 2255012) |
|
$ 121.32 | |||||
| 35 | 8201597 | Tube, Filter Inlet (Replaces: 2319867) |
|
Immediately | $ 83.70 | ||||
| 36 | WP2203770 | Hinge, Top (left) (Replaces: 2203770) |
|
$ 100.30 | |||||
| 13A | W10138965 | Hinge, Bottom (right Hand) |
|
$ 93.91 | |||||
| 1A | W10162456 | Use And Care Guide |
|
- | |||||
| 1B | W10180856 | Service And Wiring Sheet |
|
- | |||||
| 1C | 628370 | Icemaker Service Sheet |
|
- | |||||
| 1D | W10168294 | Instructions, Door Removal |
|
- | |||||
| 26A | W11778262 | Closer, Door (freezer) (Replaces: 2223751) |
|
$ 11.63 |
