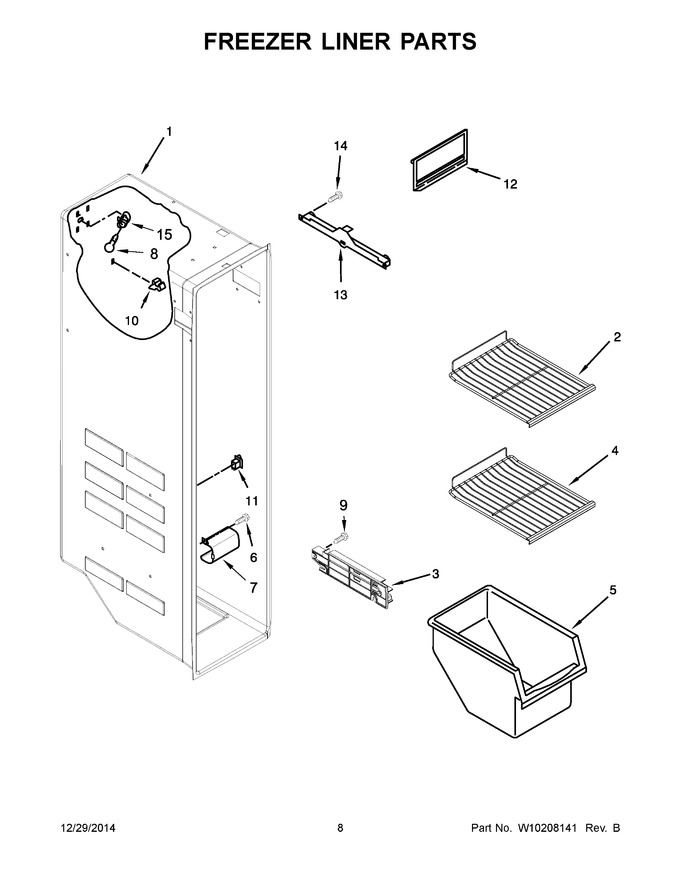

05 - Freezer Liner Parts


06 - Motor & Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Icemaker Parts


14 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	2171714K		Shelf, Freezer (top)		Appelez-nous	-
3	2261448		Track, Basket (left Hand)				$ 46.07
4	2174268K		Assembly, Freezer Shelf		Appelez-nous	-
5	WP2182971		Bin, Freezer   (Replaces: 2182971)				$ 132.50
6	W10142289		Screw   (Replaces: 3400893)				$ 8.65
7	2171705		Lens, Light				$ 94.68
8	W11679940		Bulb, Light   (Replaces: 2255743)			Immediately	$ 10.17
9	W10759522		Screw   (Replaces: W10004810)				$ 7.42
10	2215823		Clip, Air Duct   (Replaces: 842534)				$ 9.85
11	W11457217		Switch, Rocker Arm Combination (freezer)   (Replaces: 1115373)				$ 36.08
12	WP2171713		Door, Ice Compartment   (Replaces: 2171713K)				$ 82.47
13	W10845585		Slide, Ice Container (left)   (Replaces: 1119237)				$ 125.47
14	WP489478		Screw   (Replaces: 489478)				$ 7.36
15	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 104.10
13A	W10845583		Slide, Ice Container (right)   (Replaces: 1119293)				$ 117.11
3A	2261449		Track, Basket (right Hand)				$ 46.07
