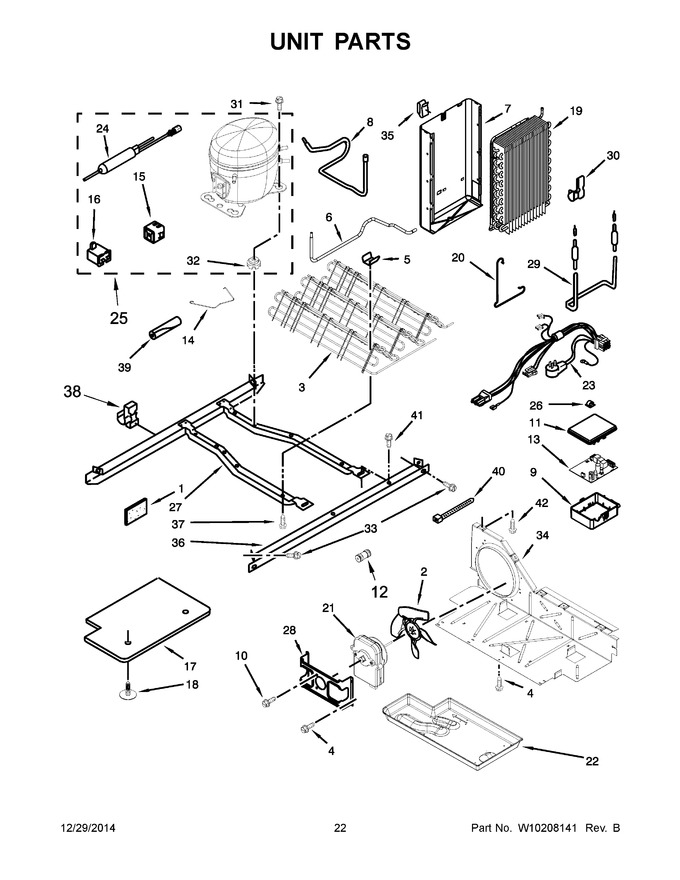

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Sealer, Insulation   (Replaces: 2169104)			Immediately	$ 13.29
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 56.52
3	2324712		Assembly, Condenser   (Replaces: W10121484)				$ 291.11
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 17.44
6	2161341		Tube, Condenser To Heat Loop		Appelez-nous	-
7	2217194		Assembly, Heat Shield And Drain Pan		Appelez-nous	-
8	2205765		Tube, Suction				$ 36.04
9	2326982		Box, Control				$ 81.33
10	WP8533993		Screw   (Replaces: 8533993)				$ 10.09
11	2255624		Cover, Control		Appelez-nous	-
12	WPW10334458		Connector, Water Tube   (Replaces: 2320322)				$ 20.40
13	2322547		Control, Electronic				$ 244.11
14	2223314		Bale Strap		Appelez-nous	-
15	W10896198		Device, Start   (Replaces: 2304884)				$ 175.69
16	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 52.97
17	2304899		Cover, Unit		Appelez-nous	-
18	489396		Clip				$ 10.13
19	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 343.34
20	2161324		Clip, Defrost Heater		Appelez-nous	-
21	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 111.76
22	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
23	W10163019		Harness, Unit		Appelez-nous	-
24	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 27.70
25	W10139462		Compressor   (Replaces: W10120459)				$ 601.50
26	WP1115374		Clip, Wire   (Replaces: 1115374)				$ 7.33
27	2304904		Frame, Unit Mounting		Appelez-nous	-
28	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 11.64
29	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 81.63
30	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
31	876811		Screw   (Replaces: 489373)				$ 7.01
32	876811		Grommet   (Replaces: 1100826)				$ 7.01
33	489340		Bolt		Appelez-nous	-
34	W10896764		Baffle, Air   (Replaces: 2196202)				$ 91.08
35	2155547		Clip, Heat Shield		Appelez-nous	-
36	2305374		Rail, Unit				$ 76.20
37	W11544659		Screw   (Replaces: 8281232)				$ 12.92
38	W10169512		Clip, Wire		Appelez-nous	-
39	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
40	WPW10339879		Tie, Wire   (Replaces: 2172840)				$ 7.47
41	WP489427		Screw   (Replaces: 489427)				$ 7.06
42	WP489478		Screw   (Replaces: 489478)				$ 7.36
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge 5.0 Oz. (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access		Appelez-nous	-
