Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Seviceable Part) Appelez-nous -
2 WPW10318948 Shelf, Wire   (Replaces: W10318948) Special Order $ 155.23

3 WPW10119935 Socket, Light   (Replaces: 2155597) Special Order $ 106.16

4 W11396033 Switch, Light   (Replaces: W10847849) In-Stock Immediately $ 37.30

5 WPW10318947 Shelf, Wire   (Replaces: W10318947) Special Order $ 91.81

6 W11577967 Bin, Freezer   (Replaces: 2309757) Special Order $ 96.30

7 WPW10130299 Cup, Shelf   (Replaces: W10130299) In-Stock Immediately $ 14.70

8 WP3-24004-109 Screw   (Replaces: W10191954) Special Order $ 9.14

9 W11223328 Assembly, Stud   (Replaces: 2196208) In-Stock Immediately $ 14.77

10 WPW10318961 Shelf, Wire   (Replaces: W10318961) In-Stock Immediately $ 81.55

11 W10716219 Bulb, Light Appelez-nous -
12 2215823 Clip, Air Duct   (Replaces: 2315163) Special Order $ 10.94

13 W10318945 Shelf, Wire Special Order $ 103.20

14 W10142289 Screw   (Replaces: 3400893) Special Order $ 9.61

15 WP841180A Tray, Ice Cube   (Replaces: 841180) In-Stock Immediately $ 47.84

16 W11298978 Cover, Light Lens   (Replaces: 2212340) Special Order $ 98.57

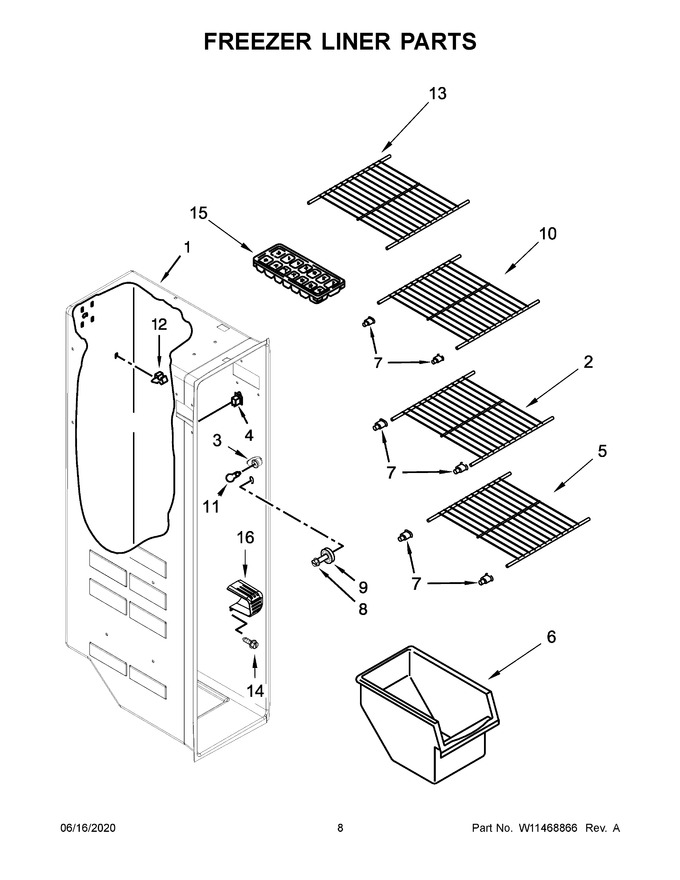

    View Diagram in Separate Window     Print Icon   Print Part List
