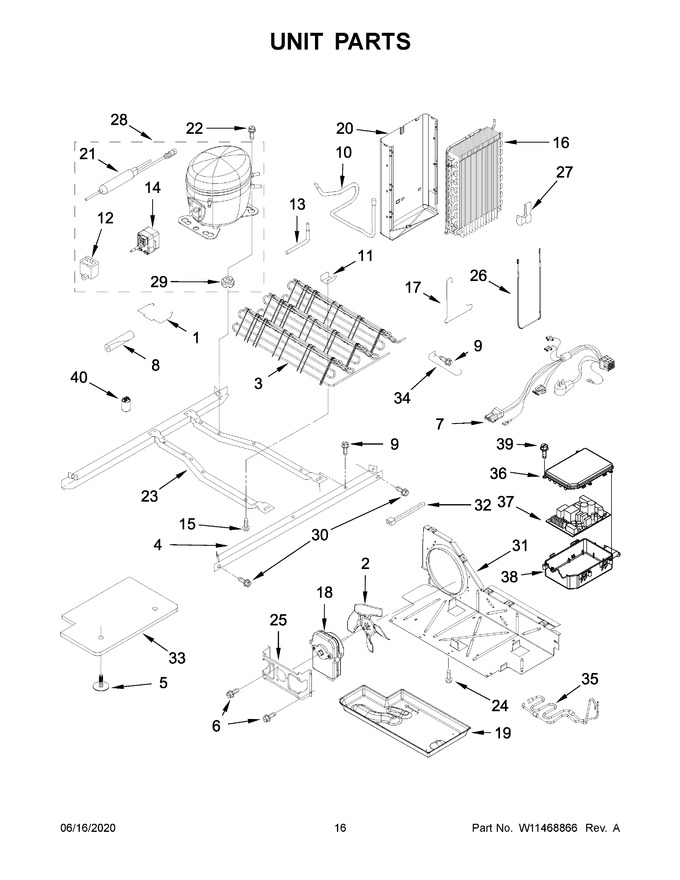

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2302129		Strap, Bale		Appelez-nous	-
2	W11458267		Blade, Fan   (Replaces: 2225834)			Immediately	$ 25.19
3	W11632924		Assembly, Condenser   (Replaces: W10904626)			Immediately	$ 237.55
4	W10900442		Rail, Unit Mounting		Appelez-nous	-
5	489396		Clip				$ 11.26
6	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
7	W11327502		Harness, Unit (includes Power Cord)		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	W10745337		Tube, Suction		Appelez-nous	-
11	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 19.38
12	2321245		Capacitor		Appelez-nous	-
13	2325479		Tube, Process		Appelez-nous	-
14	W10796753		Device, Start		Appelez-nous	-
15	W11544659		Screw   (Replaces: 8281232)				$ 14.35
16	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
17	2161324		Clip, Defrost Heater		Appelez-nous	-
18	W10837641		Fan, Motor   (Replaces: W10293680)		Appelez-nous	-
19	W11678304		Tray, Evaporator   (Replaces: W10897557)				$ 57.39
20	W10194475		Assembly, Heat Shield And Drain Pan		Appelez-nous	-
21	WPW10143759		Drier   (Replaces: W10771114)			Immediately	$ 30.78
22	W11661574		Screw   (Replaces: 489473)				$ 14.29
23	W10900445		Frame, Unit Mounting		Appelez-nous	-
24	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
25	WP2181929		Bracket, Fan Mounting   (Replaces: 2181929)				$ 12.93
26	WPW10123653		Heater, Defrost   (Replaces: W10123653)				$ 164.49
27	2161324		Clip, Defrost Heater		Appelez-nous	-
28	W10183407		Compressor   (Replaces: W10120455)				$ 435.61
29	W10836504		Grommet, Compressor				$ 18.25
30	489340		Bolt		Appelez-nous	-
31	W10896764		Baffle, Air   (Replaces: W10897567)				$ 101.20
32	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
33	W10897560		Assembly, Unit Cover (bottom)				$ 101.57
34	1110663		Guard, Fan		Appelez-nous	-
35	W11678305		Assembly, Precooler Formed   (Replaces: W11189542)				$ 66.63
36	W11407236		Cover, Control		Appelez-nous	-
37	W11604765		Control, Electronic   (Replaces: W11307913)				$ 429.85
38	2323186		Box, Control				$ 107.48
39	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.61
40	W10738041		Filter, Emi				$ 52.31
NI	978026		Valve, Access (5/16")			Immediately	$ 134.49
NI	WP978025		Valve, Access (1/4")   (Replaces: 978025)			Immediately	$ 110.51
NI	N/P		Refrigerant Charge 5.5 Oz (r-134a)		Appelez-nous	-
NI	876764		Valve, Access (3/16")			Immediately	$ 95.92
NI	978029		Valve, Access (5/8")				$ 93.85
NI	978030		Valve, Access (3/4")				$ 137.25
NI	SF5538		Valve, Access (3/8")   (Replaces: 978027)				$ 21.64
