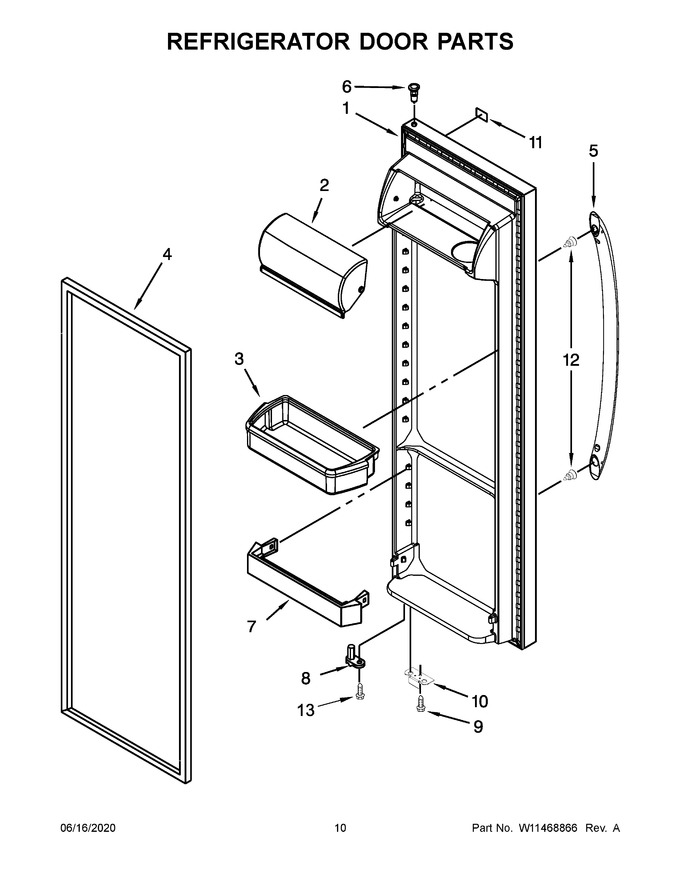

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11110269 | Door, Refrigerator (includes Gasket) (stainless) (Replaces: W11110269) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | WPW10269173 | Door Bin, Shallow (Replaces: W10269173) |
|
$ 70.77 | |||||
| 4 | W10136735 | Gasket, Door (grey) (Replaces: W10912081) |
|
$ 254.84 | |||||
| 5 | W10879677 | Handle (stainless) (Replaces: W10838130) |
|
Immediately | $ 215.42 | ||||
| 6 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 8 | W11397972 | Thimble, Cam (Replaces: W10900464) |
|
$ 13.79 | |||||
| 9 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 10 | W11557261 | Bracket, Door Stop (black) (Replaces: W10900463) |
|
Immediately | $ 18.67 | ||||
| 11 | WPW10612926 | Badge (Replaces: W10612926) |
|
Immediately | $ 39.60 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 13 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 10.33 |
