SELECT A DIAGRAM

01 - Cover Sheet

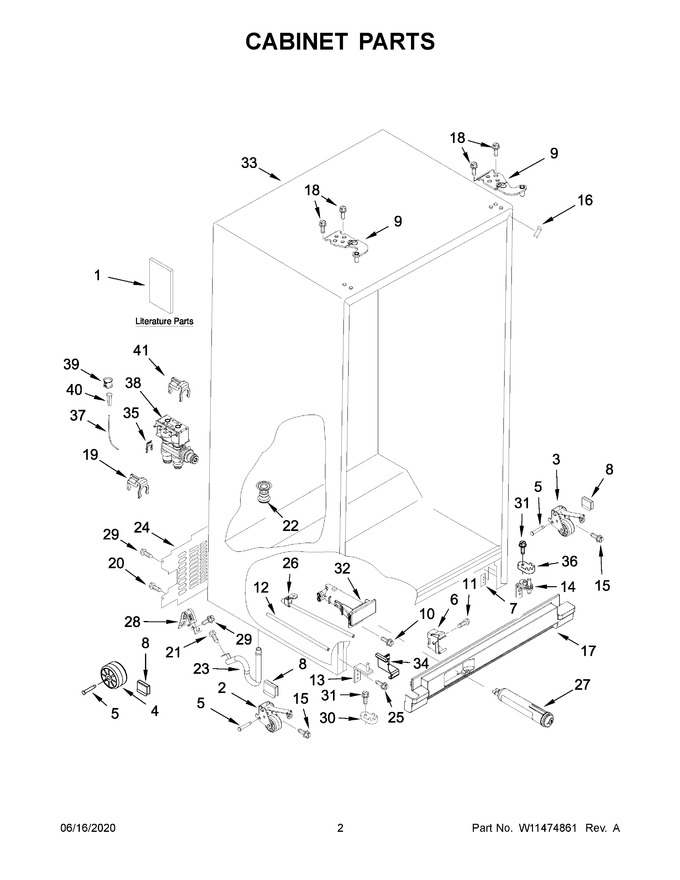

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11366704		Use And Care Guide		Appelez-nous	-
2	WPW10304660		Assembly, Roller (left Hand)   (Replaces: W10304660)			Immediately	$ 70.38
3	WPW10304659		Assembly, Roller (right Hand)   (Replaces: W10304659)			Immediately	$ 68.52
4	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
5	W11594405		Axle, Roller   (Replaces: 2262072)			Immediately	$ 18.21
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	W11036715		Plate, Screw (refrigerator)		Appelez-nous	-
8	W11594405		Clip, Roller   (Replaces: W11087168)			Immediately	$ 18.21
9	W11505709		Hinge, Top (left Hand)   (Replaces: W11167022)				$ 64.30
10	WP489500		Screw   (Replaces: 489500)				$ 7.78
11	WP489128		Screw   (Replaces: 8281149)				$ 10.88
12	W11162036		Tube, Filter Outlet   (Replaces: W10900447)				$ 114.71
13	W11687636		Assembly, Bottom Hinge (freezer)   (Replaces: W11093938)				$ 69.42
14	W11399415		Assembly, Bottom Hinge (refrigerator)   (Replaces: W11097327)				$ 69.79
15	W11544561		Screw   (Replaces: 2152958)				$ 14.05
16	W11219639		Filler, Wrapper (white)				$ 11.31
17	W11282545		Grille (white)   (Replaces: W11226340)		Appelez-nous	-
18	W11579735		Screw, Hinge   (Replaces: W10290781)			Immediately	$ 14.03
19	W11091654		Connector, Double Lock			Immediately	$ 21.15
20	WP488488		Screw   (Replaces: 489290)				$ 7.68
21	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
22	W11566763		Fitting, Drain   (Replaces: 2304888)			Immediately	$ 50.90
23	W11512417		Extension, Drain Fitting   (Replaces: W10153550)				$ 34.79
24	W11778265		Cover, Unit   (Replaces: W10904634)				$ 91.50
25	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
26	W11162040		Tube, Filter Inlet   (Replaces: W10900449)				$ 115.43
27	EDR1RXD1B		Filter, Water   (Replaces: W10735398)			Immediately	$ 49.99
28	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 21.07
29	WPW10141645		Screw   (Replaces: W10141645)				$ 7.67
30	W11679635		Closer, Door (freezer)   (Replaces: W11095731)			Immediately	$ 13.08
31	WP489483		Screw   (Replaces: W10142234)				$ 10.87
32	W11162041		Housing, Water Filter (white)   (Replaces: W11036340)			Immediately	$ 132.05
33	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
34	W10897565		Assembly, Bracket				$ 68.47
35	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 14.18
36	W11398787		Closer, Lower Cam Door (refrigerator)   (Replaces: W10905504)				$ 13.91
37	W10823511		Tube, Water   (Replaces: W10357076)			Immediately	$ 32.41
38	WPW10179146		Assembly, Filter Valve   (Replaces: W10179146)			Immediately	$ 99.47
39	W10861184		Clamp, Tube   (Replaces: W10329003)				$ 62.76
40	4387491		Insert, Tube   (Replaces: 2181939)				$ 7.84
41	W11252188		Double Lock Ring (1/4)				$ 19.86
16A	W11219641		Filler, Wrapper (black)				$ 11.31
16B	W11219642		Filler, Wrapper (grey)			Immediately	$ 12.24
17A	W11282546		Grille (black)   (Replaces: W11226342)				$ 117.15
17B	W11282544		Grille (grey)   (Replaces: W11226338)				$ 122.67
1A	W11193468		Tech Sheet		Appelez-nous	-
1B	W11239616		Energy Guide		Appelez-nous	-
32A	W11172791		Housing, Water Filter (black)   (Replaces: W11036341)			Immediately	$ 209.64
32B	W11162042		Housing, Water Filter (grey)   (Replaces: W11036338)			Immediately	$ 149.82
35A	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 14.19
7A	W10904380		Plate, Screw (freezer)				$ 24.72
9A	W11505710		Hinge, Top (right Hand)   (Replaces: W11167023)				$ 64.30

    View Diagram in Separate Window       Print Part List
