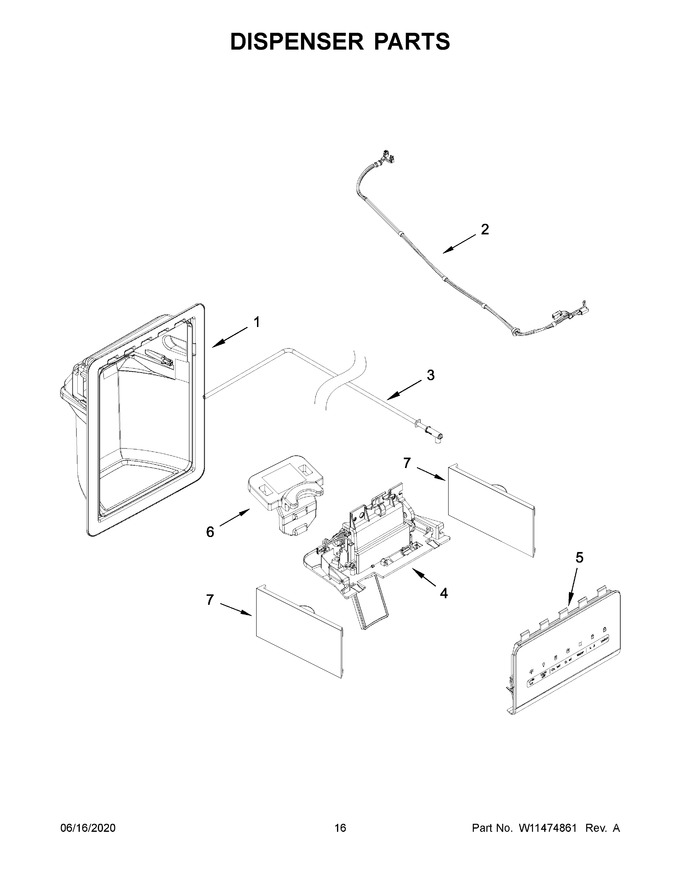

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10913117		Harness, Wire		Appelez-nous	-
3	W11163765		Assembly, Water Fitting   (Replaces: W10898317)			Immediately	$ 166.06
4	W11678834		Assembly, Separator (white)   (Replaces: W11355296)			Immediately	$ 175.93
5	W11518204		Assembly, User Interface (includes Light Feature) (black)   (Replaces: W11169239)			Immediately	$ 318.44
6	W11397167		Retainer, Separator Hose   (Replaces: W11039857)			Immediately	$ 22.23
7	W11311797		Cover, Dispenser Front (white (left Hand))   (Replaces: W11183318)		Appelez-nous	-
4A	W11678833		Assembly, Separator (black)   (Replaces: W11355295)				$ 175.93
4B	W11678832		Assembly, Separator (grey)   (Replaces: W11355294)			Immediately	$ 181.94
7A	W11311798		Cover, Dispenser Front (white (right Hand))   (Replaces: W11183314)		Appelez-nous	-
7B	W11311799		Cover, Dispenser Front (black (left Hand))   (Replaces: W11183317)				$ 102.72
7C	W11311800		Cover, Dispenser Front (black (right Hand))   (Replaces: W11183313)			Immediately	$ 106.31
