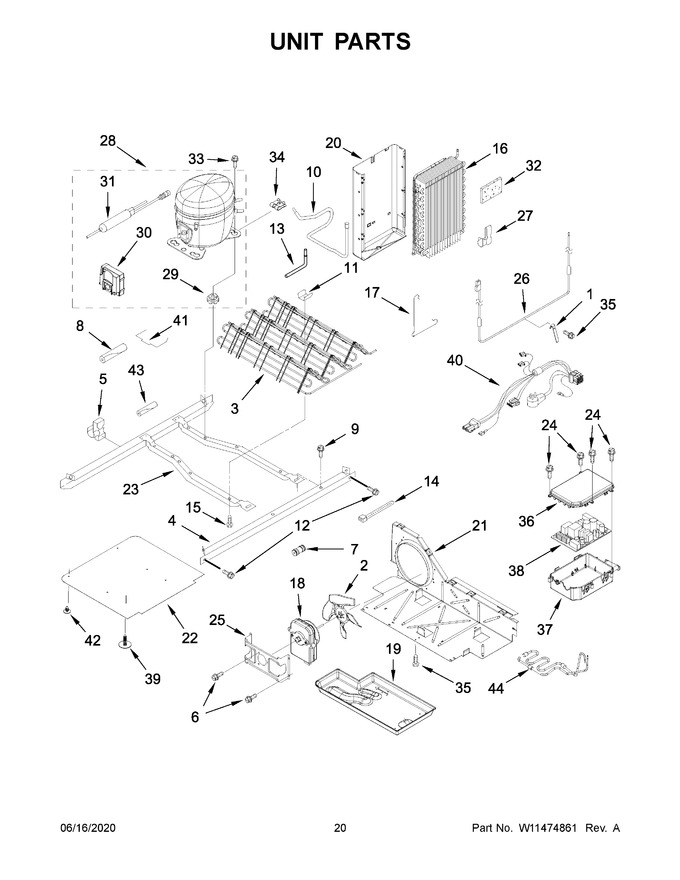

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11611126		Probe, Heat   (Replaces: W10895163)				$ 23.16
2	W11458267		Blade, Fan   (Replaces: 2225834)			Immediately	$ 25.19
3	W11632924		Assembly, Condenser   (Replaces: W10904626)			Immediately	$ 237.55
4	W10900442		Rail, Unit Mounting		Appelez-nous	-
5	W10812039		Clip, Wire   (Replaces: 2326941)				$ 11.12
6	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
7	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 29.05
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	W10745337		Tube, Suction		Appelez-nous	-
11	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 19.38
12	489340		Bolt		Appelez-nous	-
13	2325479		Tube, Process		Appelez-nous	-
14	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
15	W11544659		Screw   (Replaces: 8281232)				$ 14.35
16	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
17	2161324		Clip, Defrost Heater		Appelez-nous	-
18	W11578915		Motor, Condenser Fan   (Replaces: W10522629)			Immediately	$ 71.42
19	W11678304		Tray, Evaporator   (Replaces: W10897557)				$ 57.39
20	W10194475		Assembly, Heat Shield And Drain Pan		Appelez-nous	-
21	W10896764		Baffle, Air   (Replaces: W10897567)				$ 101.20
22	W10897560		Assembly, Unit Cover (bottom)				$ 101.57
23	W10900446		Frame, Unit Mounting (includes Unit Mounting Rail)		Appelez-nous	-
24	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.61
25	WP2181929		Bracket, Fan Mounting   (Replaces: 2181929)				$ 12.93
26	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
27	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
28	W10276644		Compressor   (Replaces: W10168473)			Immediately	$ 761.58
29	WPW10169124		Grommet   (Replaces: 10835903)			Immediately	$ 7.55
30	W10920537		Inverter Box Assembly   (Replaces: W10756737)				$ 405.25
31	WPW10143759		Drier   (Replaces: W10771114)			Immediately	$ 30.78
32	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
33	W11417341		Screw   (Replaces: W10476309)				$ 14.07
34	W10697017		Clip, Retaining		Appelez-nous	-
35	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
36	W10334855		Cover, Control		Appelez-nous	-
37	2323186		Box, Control				$ 107.48
38	W11449482		Control, Electronic   (Replaces: W11265217)				$ 274.91
39	489396		Clip				$ 11.26
40	W11490168		Control, Electronic   (Replaces: W11229001)		Appelez-nous	-
41	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 8.30
42	W10000080		Retainer, Push-in		Appelez-nous	-
43	2264838		Sleeve				$ 92.28
44	W11678305		Assembly, Precooler Formed   (Replaces: W11189542)				$ 66.63
NI	978026		Valve, Access (5/16")			Immediately	$ 134.49
NI	WP978025		Valve, Access (1/4")   (Replaces: 978025)			Immediately	$ 110.51
NI	N/P		Refrigerant Charge 5.5 Oz (r-134a)		Appelez-nous	-
NI	876764		Valve, Access (3/16")			Immediately	$ 95.92
NI	978029		Valve, Access (5/8")				$ 93.85
NI	978030		Valve, Access (3/4")				$ 137.25
NI	SF5538		Valve, Access (3/8")   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
