SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Controls & Cabinet (ref/frz)
02 - Controls & Cabinet (ref/frz)

Diagram for 03 - Crushed Ice Bucket
03 - Crushed Ice Bucket

Diagram for 04 - Crushed Ice Bucket (cont.)
04 - Crushed Ice Bucket (cont.)

Diagram for 05 - Door/hinge/trim Fz
05 - Door/hinge/trim Fz

Diagram for 06 - Door/hinge/trim Ref
06 - Door/hinge/trim Ref

Diagram for 07 - Drain & Rollers
07 - Drain & Rollers

Diagram for 08 - Evap & Air Handling
08 - Evap & Air Handling

Diagram for 09 - Fz Door
09 - Fz Door

Diagram for 10 - Fz Shelving & Ref Light
10 - Fz Shelving & Ref Light

Diagram for 11 - Ice & Water Cavity
11 - Ice & Water Cavity

Diagram for 12 - Ice & Water Cavity (cont.)
12 - Ice & Water Cavity (cont.)

Diagram for 13 - Icemaker
13 - Icemaker

Diagram for 14 - Panasonic Compressor
14 - Panasonic Compressor

Diagram for 15 - Ref Door
15 - Ref Door

Diagram for 16 - Ref Door (cont.)
16 - Ref Door (cont.)

Diagram for 17 - Shelving & Drawers (ref)
17 - Shelving & Drawers (ref)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A1061701 Washer Appelez-nous -
2 B8385101 Nut-helix Appelez-nous -
3 C8964101 Bar, Breaker Appelez-nous -
4 C8975307 Insert, Bucket Front Appelez-nous -
5 WPD7749401 Cap, Helix End   (Replaces: D7749401) Special Order $ 29.01

6 D7749501 Helix Appelez-nous -
7 D7749601 Wheel Lift Appelez-nous -
8 D7749707 Bucket, Ice V Appelez-nous -
9 D7749802 Front, Bucket Appelez-nous -
10 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

11 67005375 Glide-l Fz   (Replaces: D7849903) Special Order $ 312.82

12 D7849904 Glide, Freezer Rh Appelez-nous -
13 M0243529 Screw, Glides Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

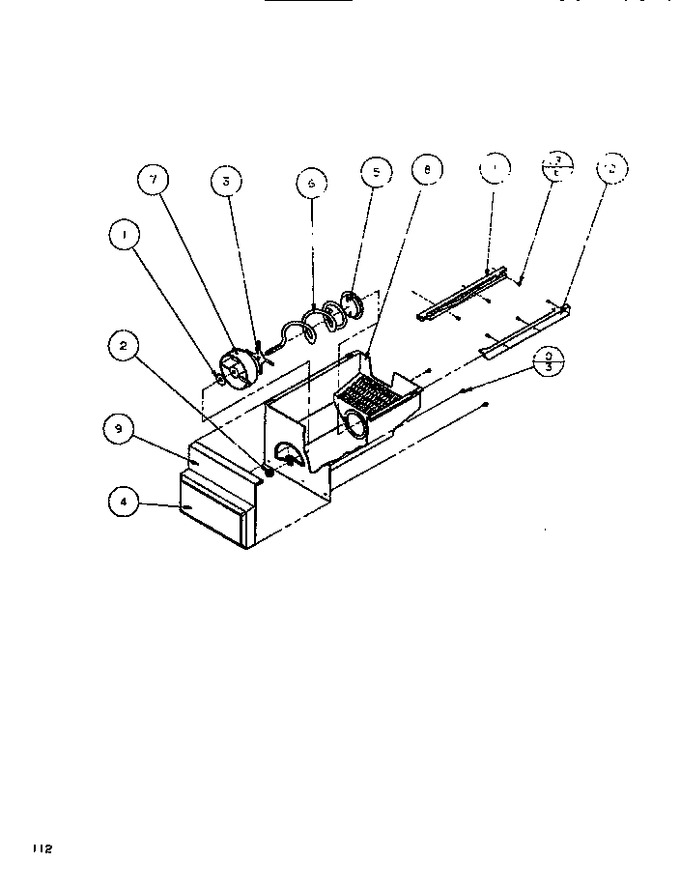

Diagram for ASE526M (BOM: P1164004W)
