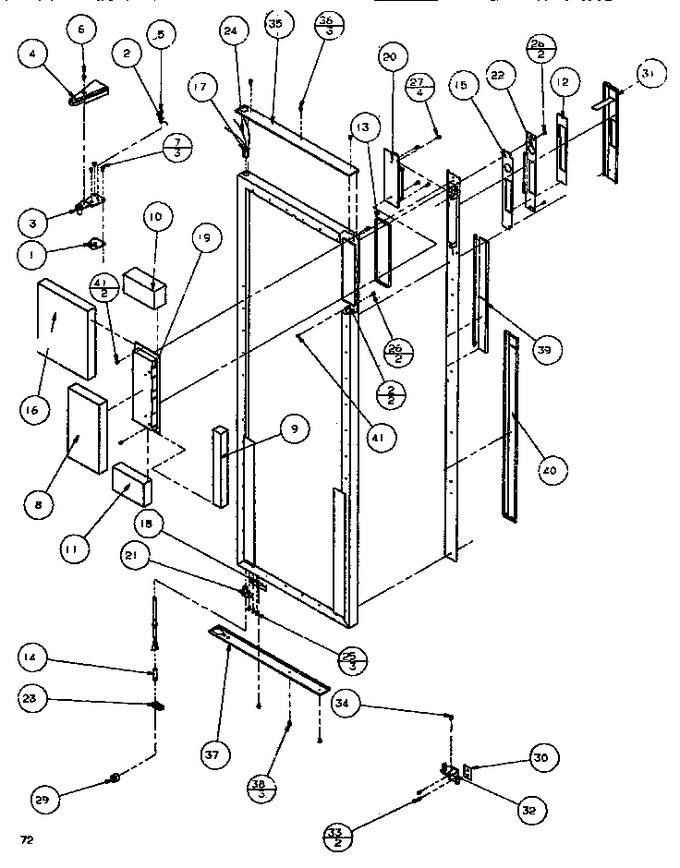

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 2 | M0272803 | Lock Washer |
|
- | |||||
| 3 | 10185101 | Top Hinge-e Ct |
|
- | |||||
| 4 | 10126404 | Cover Hinge L |
|
- | |||||
| 4 | 10126403 | Cover, Hinge R W |
|
- | |||||
| 5 | W11214483 | Screw, Mach (Replaces: M0202321) |
|
$ 14.72 | |||||
| 6 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 7.55 | ||||
| 7 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 8 | B5612028 | Insulation Batt |
|
- | |||||
| 9 | B5629046 | Insulation |
|
- | |||||
| 10 | B5629047 | Insulation |
|
- | |||||
| 11 | 10270903 | Insulation |
|
- | |||||
| 12 | B8390401 | Gasket Trim |
|
- | |||||
| 13 | B8390501 | Gasket Retainer K |
|
- | |||||
| 14 | 10561601 | Assy, Hinge Pin |
|
- | |||||
| 15 | 10519901 | Gasket, Bracket |
|
- | |||||
| 16 | 10270906 | Insulation |
|
- | |||||
| 17 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 18 | C8972404 | Stop, Satin Door |
|
- | |||||
| 19 | D7832904 | Cover,p.c. Board |
|
- | |||||
| 19 | D7832903 | Cover, P.c. Board |
|
- | |||||
| 20 | 10169502 | P.c. Board |
|
- | |||||
| 21 | D7833201 | Closure, Door (white) |
|
- | |||||
| 22 | D7833501 | Bracket Trim |
|
- | |||||
| 23 | D7838401 | Closure, Door (white) |
|
- | |||||
| 24 | 10520902 | Harness-ref Dr Kit |
|
- | |||||
| 24 | 10030302 | Harness Ref |
|
- | |||||
| 25 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 26 | M0230727 | Screw |
|
- | |||||
| 27 | M0217204 | Screw |
|
- | |||||
| 29 | M0335408 | Connector |
|
- | |||||
| 29 | M0335411 | Connector-12 Pin |
|
- | |||||
| 30 | 10399501 | Kit,btm Hinge Shim |
|
- | |||||
| 30 | 10399502 | Kit,btm Hinge Shim |
|
- | |||||
| 31 | 10535303 | Assy. Upper Trim White |
|
- | |||||
| 31 | D7834213 | Assy, Up Trim (white) |
|
- | |||||
| 31 | 10535302 | Upper Trim Keyboard Assy |
|
- | |||||
| 31 | D7834214 | Upper Trim Keyboard Assy |
|
- | |||||
| 32 | 10163603 | Bottom Hinge Assembly, Brown |
|
- | |||||
| 33 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 34 | WP489128 | Screw (Replaces: M0220417) |
|
$ 11.40 | |||||
| 38 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 39 | D7853805 | Trim Center Ref Dr |
|
- | |||||
| 39 | D7853803 | Trim Center Ref |
|
- | |||||
| 40 | D7792805 | Trim Lwr Ref Door |
|
- | |||||
| 40 | D7792803 | Trim Lwr Ref Door |
|
- |
