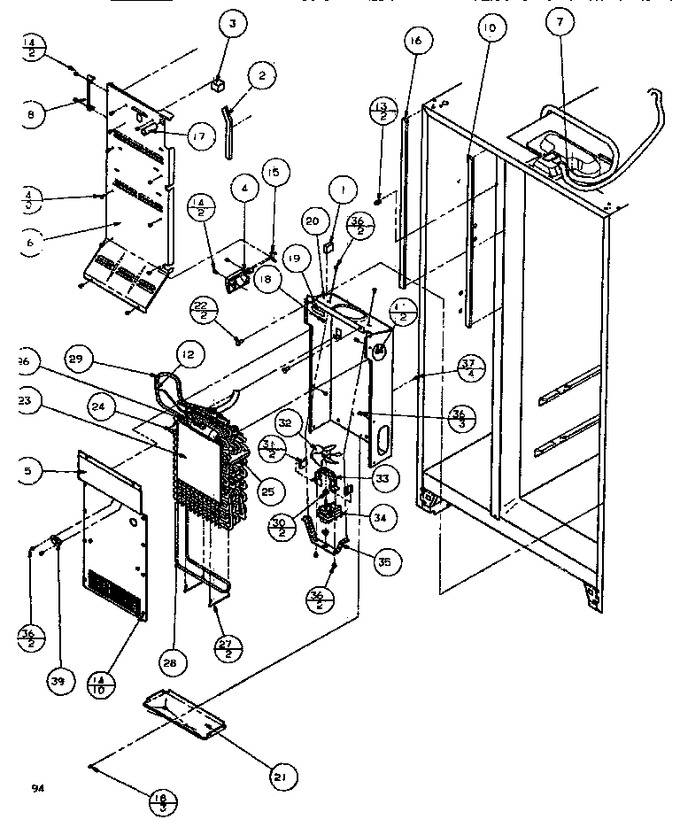

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8386603		Gasket		Appelez-nous	-
2	B8386602		Gasket		Appelez-nous	-
3	C8976102		Gasket, Air Block		Appelez-nous	-
4	D7786902		Cover, M.k. Air		Appelez-nous	-
5	D7865908		Cover Evaporator		Appelez-nous	-
6	D7846008		Ass`y, Frz Back		Appelez-nous	-
6	D7846007		Ass`y, Frzr Back		Appelez-nous	-
7	10295201		Harness Ref Liner		Appelez-nous	-
8	D7838302		Cover, Supply Air		Appelez-nous	-
10	A3189347		Gasket		Appelez-nous	-
11	WP489399		Screw   (Replaces: M0232903)				$ 7.30
12	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
13	M0322202		Tie Wire		Appelez-nous	-
14	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
15	A3189340		Gasket Foam		Appelez-nous	-
16	A3189346		Gasket		Appelez-nous	-
17	A3127410		Ext, Fill Tube		Appelez-nous	-
17	A3127414		Ext. Fill Tube		Appelez-nous	-
18	10098801		Rivet		Appelez-nous	-
19	B5757707		Gasket, Foam		Appelez-nous	-
20	D7865804		Evaporator Shield		Appelez-nous	-
21	D7850202		Drip Tray Pnt.		Appelez-nous	-
22	M0580003		Grommet		Appelez-nous	-
23	B8327901		Gasket, Evap.		Appelez-nous	-
24	B8385502		Block-lh Air Coil		Appelez-nous	-
25	B8385601		Block P M Air Coil		Appelez-nous	-
26	R0161090		Kit, Defrost Thermostat   (Replaces: C8972008)				$ 110.66
27	C8983101		Clip, Evap. Heater		Appelez-nous	-
28	D7872805		Heater Defrost		Appelez-nous	-
29	R0170041		Assy,low Side-thin Wall Evap		Appelez-nous	-
30	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
31	A1047901		Shim		Appelez-nous	-
32	C8795501		Fan-evap		Appelez-nous	-
33	C8881301		Brkt Evap Fan		Appelez-nous	-
34	WP10513804		Motor, Evap.   (Replaces: C8891604)				$ 256.76
35	D7767703		Bracket-motor/shroud		Appelez-nous	-
36	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
37	M0580002		Grommet A		Appelez-nous	-
39	C8983701		Thermistor Domestic		Appelez-nous	-
NI	M0327901		Insulation, Term		Appelez-nous	-
