SELECT A DIAGRAM

01 - Cover Sheet

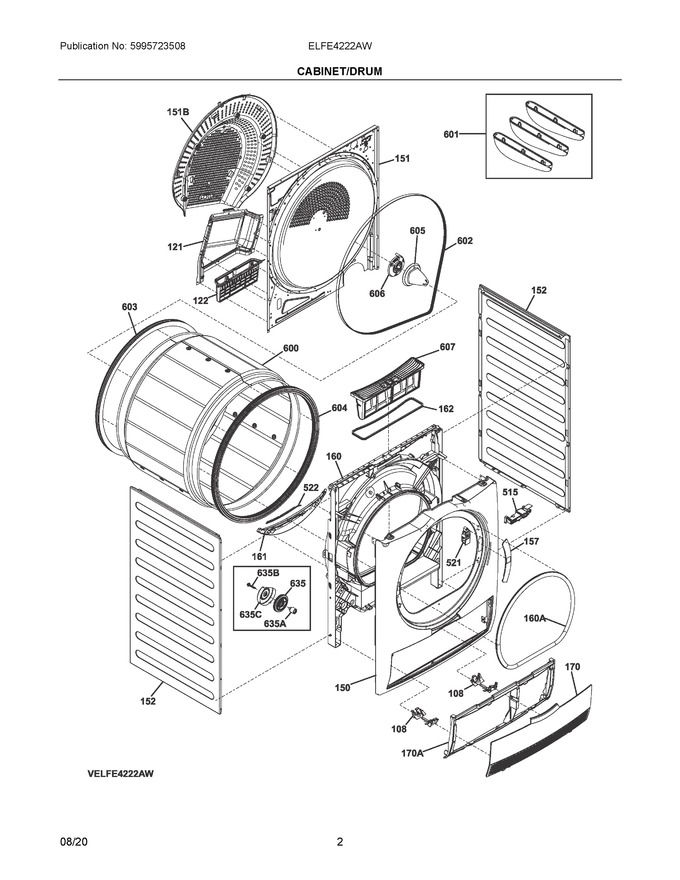

02 - Cabinet/drum


03 - Door Panel


04 - Controls/top Panel


05 - Drying System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
108	A04450702		Hinge, Plinth				$ 14.28
121	405541956		Cover Kit, Heating Element, W/gasket				$ 46.46
122	136602703		Grating, Protection, Heating Element				$ 393.23
150	136446200		Panel, Front, White				$ 229.89
151	A12311917		Back Panel, Assembly		Appelez-nous	-
152	5304526177		Panel, Side, White, Insulation   (Replaces: A13207501)			Immediately	$ 172.33
157	136608900		Cover Plate, Door Lock, White				$ 48.00
160	A11758304		Air Duct, Front		Appelez-nous	-
161	136605801		Support, Humidity Sensor				$ 68.83
162	136606100		Gasket, Lint Filter				$ 53.55
170	A06477510		Plinth, White				$ 132.87
515	136611111		Switch, Door			Immediately	$ 184.07
521	A06777701		Door Lock, Assembly			Immediately	$ 43.75
522	136602910		Sensor, Humidity			Immediately	$ 64.05
600	809070812		Drum Assembly, W/3 Vanes			Immediately	$ 248.06
601	405549390		Vane Kit, Drum, Grey, 3 Pieces				$ 45.68
602	809183801		Belt, Drive, L=1886.7mm				$ 56.07
603	136424300		Gasket, Drum, Back, 1683mm				$ 179.08
604	807708601		Gasket, Front, Large Opening				$ 87.71
605	136655404		Cone, Agitator, Anti-entangle		Appelez-nous	-
606	136623702		Cone, Anti-entangle, Base				$ 38.12
607	136601901		Lint Filter, Assembly, Fluff				$ 214.99
635	807787703		Roller, Support, Drum		Appelez-nous	-
151B	405542582		Bulkhead Kit, Rear, Plastic, W/insl Mat				$ 91.14
160A	A06609701		Gasket, Front, Large Opening			Immediately	$ 59.60
170A	A04451003		Support, Plinth, Black				$ 97.20
635A	125425004		Bushing, Support, Roller				$ 144.11
635B	124022201		Bolt, 5, 5x38				$ 48.83
635C	809166602		Cover, Roller, Metal				$ 29.73
NI	A17667601		Harness, Humid Sensor, To Main Board, J22		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
