View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet/drum
03 - Door Panel
04 - Controls/top Panel
05 - Drying System
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

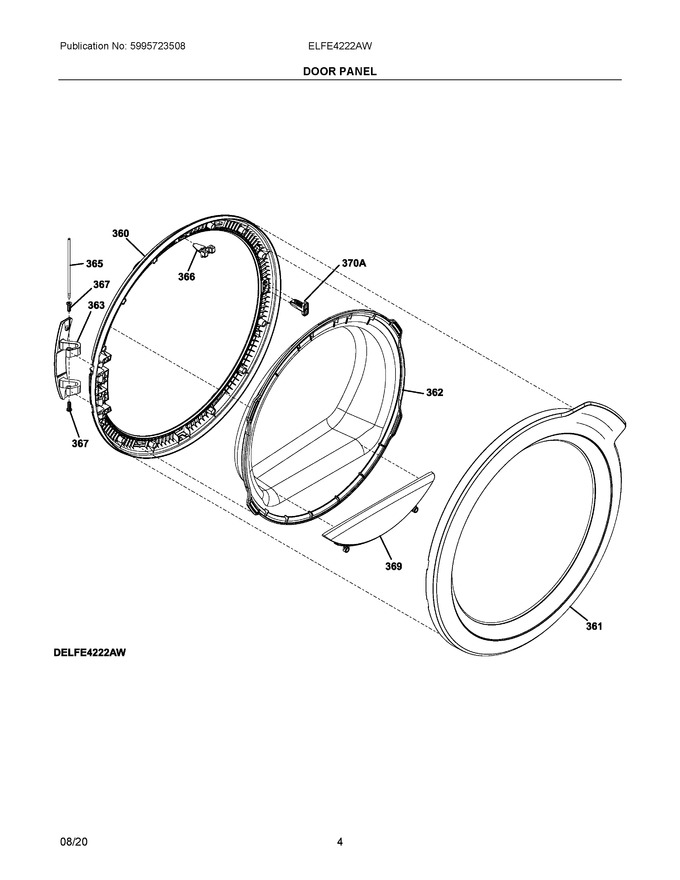

| 360 | A04449812 | Door Frame, Grey, Back |
|
$ 145.87 | |||||
| 361 | A04449207 | Door Frame, Grey, Front |
|
$ 258.80 | |||||
| 362 | A18041201 | Window, Transparent, Inner |
|
$ 136.55 | |||||
| 363 | A04450402 | Hinge Assembly, Door |
|
$ 102.61 | |||||
| 365 | 132554120 | Pin, Door Hinge |
|
$ 48.83 | |||||
| 366 | A04917502 | Tappet, Door, Aluminum |
|
$ 24.82 | |||||
| 367 | 136625401 | Bushing, Hinge |
|
$ 5.63 | |||||
| 369 | A04449908 | Gasket, Door, Black |
|
$ 36.40 | |||||
| 370A | 808681114 | Catch, Door Lock, Glass Door |
|
Immediately | $ 24.43 |
