View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet/drum
03 - Door Panel
04 - Controls/top Panel

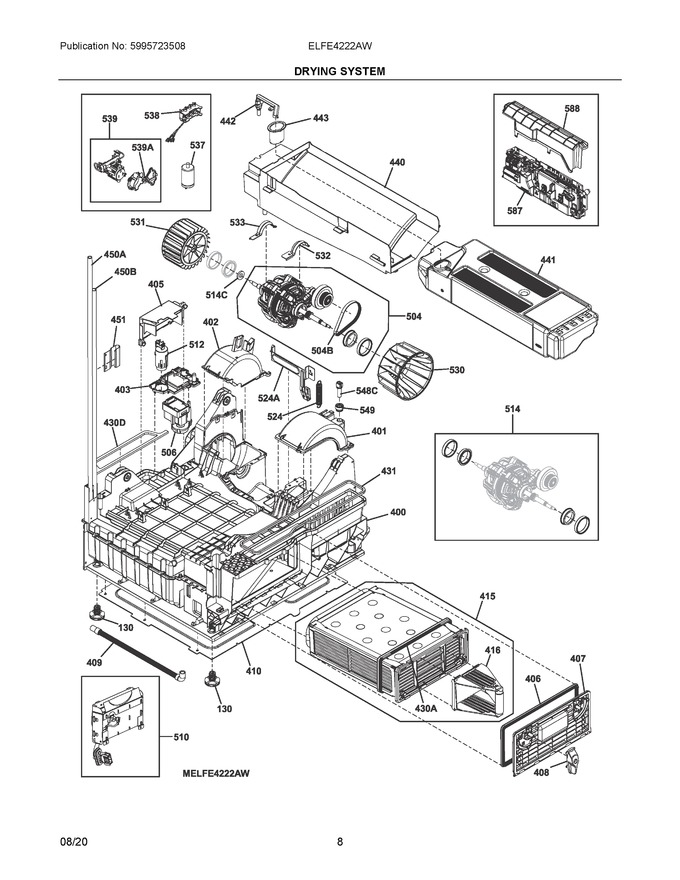

05 - Drying System
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 130 | 899647060471 | Leg, Level, Black, Adjust Foor |
|
Immediately | $ 79.64 | ||||
| 400 | 136600042 | Basement, Condensor P10 |
|
$ 303.15 | |||||
| 401 | 136604102 | Cover, Fan Wheel, Front |
|
$ 157.21 | |||||
| 402 | 136604205 | Cover, Fan Wheel, Back |
|
$ 123.48 | |||||
| 403 | 136604914 | Support, Pump |
|
$ 11.03 | |||||
| 405 | 136606504 | Cover, Pump, Float Switch |
|
$ 111.51 | |||||
| 406 | 136607300 | Gasket, Door, Basement |
|
$ 79.54 | |||||
| 407 | 136609110 | Door, Condenser, Basement |
|
$ 80.80 | |||||
| 408 | 136609214 | Knob, Door Lock, Basement |
|
$ 118.13 | |||||
| 409 | 136605700 | Pipe, Discharge, L=331.5mm |
|
$ 62.53 | |||||
| 410 | A03209401 | Cover, Basement |
|
- | |||||
| 415 | 136701301 | Condenser, Steam Asmy |
|
$ 264.92 | |||||
| 416 | 136607400 | Handle, Steam Condensor |
|
- | |||||
| 431 | 136605600 | Sealing, Air Duct, Basement |
|
$ 60.64 | |||||
| 440 | 136601721 | Support, Upper Tank |
|
- | |||||
| 441 | A05027101 | Tank, Upper |
|
- | |||||
| 442 | 136602804 | Connector, Upper Tank |
|
$ 18.90 | |||||
| 443 | A05734604 | Bushing, Upper Tank, Oval |
|
- | |||||
| 451 | 136603500 | Tube, Holder |
|
- | |||||
| 504 | A13608402 | Motor, Reduction Gear, 200v, 267hz, 207w |
|
$ 388.56 | |||||
| 506 | 136402403 | Pump, Condensation, 240v, 60hz, 15w |
|
Immediately | $ 145.53 | ||||
| 510 | 5304537407 | Heater, 240v, 1900+700w (Replaces: 136611032) |
|
Immediately | $ 184.11 | ||||
| 512 | 136614001 | Switch, Micro, Float |
|
$ 167.63 | |||||
| 514 | 405549614 | Bushing Kit, Motor, Front & Rear |
|
$ 20.09 | |||||
| 524 | 125694900 | Tension Spring, Motor |
|
$ 59.44 | |||||
| 530 | 136609300 | Wheel, Fan, ?141mm, Front (Replaces: 136609301) |
|
$ 66.83 | |||||
| 531 | 136604401 | Fan, Wheel, Back, Cooling |
|
Immediately | $ 259.88 | ||||
| 532 | A00551101 | Fixing Bracket, Main Motor Frnt |
|
$ 54.55 | |||||
| 533 | A00551201 | Fixing Bracket, Main Motor Frnt |
|
$ 55.43 | |||||
| 537 | 808089303 | Filter, Anti-interfer, Power Cable |
|
$ 266.70 | |||||
| 538 | A01517005 | Terminal Block, Asmy, Wiring, Ul |
|
- | |||||
| 539 | 405551571 | Receptacle, Assembly, W/cap |
|
$ 285.16 | |||||
| 549 | 991099931 | Sealing, Temp Sensor (Replaces: 124664400) |
|
$ 0.02 | |||||
| 587 | 5304525856 | Pc Board, Assembly, Main, Configured |
|
$ 539.72 | |||||
| 588 | A04190901 | Cover, Pc Board, Main Control |
|
- | |||||
| 430A | 125106700 | Gasket, Heat Exchanger, Nex4 Cond, Front |
|
$ 94.59 | |||||
| 430D | 136606800 | Gasket, Heater, Basement |
|
$ 64.31 | |||||
| 450A | 136605501 | Hose, Pump, Tanl, L=1130 |
|
- | |||||
| 450B | 136605411 | Hose, Overflow, 1040mm |
|
$ 129.15 | |||||
| 504B | 808699801 | Belt, Drive, L=267.5mm, Reduction Gear |
|
$ 155.14 | |||||
| 514C | 136608610 | Felt, Disc, 024/012mm |
|
$ 54.34 | |||||
| 524A | A00299401 | Support, Tension Spring |
|
$ 130.73 | |||||
| 539A | A18346501 | Cap, Socket |
|
- | |||||
| 548C | 8581242941111 | Temperature Probe, Ntc (Replaces: 124294111) |
|
Immediately | $ 25.22 | ||||
| NI | A19709101 | Harness, Terminal Block, To Socket |
|
- | |||||
| NI | A01523002 | Harness, Anti-interfer, To Main Board |
|
- | |||||
| NI | A16314102 | Harness, Motor, To Main Board |
|
- | |||||
| NI | A17667101 | Harness, Temp Probe, To Wtr Lvl Prb |
|
$ 187.96 | |||||
| NI | A17667201 | Harness, Pump, To Main Board, J5 |
|
- | |||||
| NI | A17667301 | Harness, Heating Element, To Main Board, J17 & J18 |
|
$ 196.80 | |||||
| NI | A17667401 | Harness, Heating Element, To Main Board, J23 & 1490 |
|
$ 196.80 | |||||
| NI | 5022432900 | Nut, M6 |
|
- |
