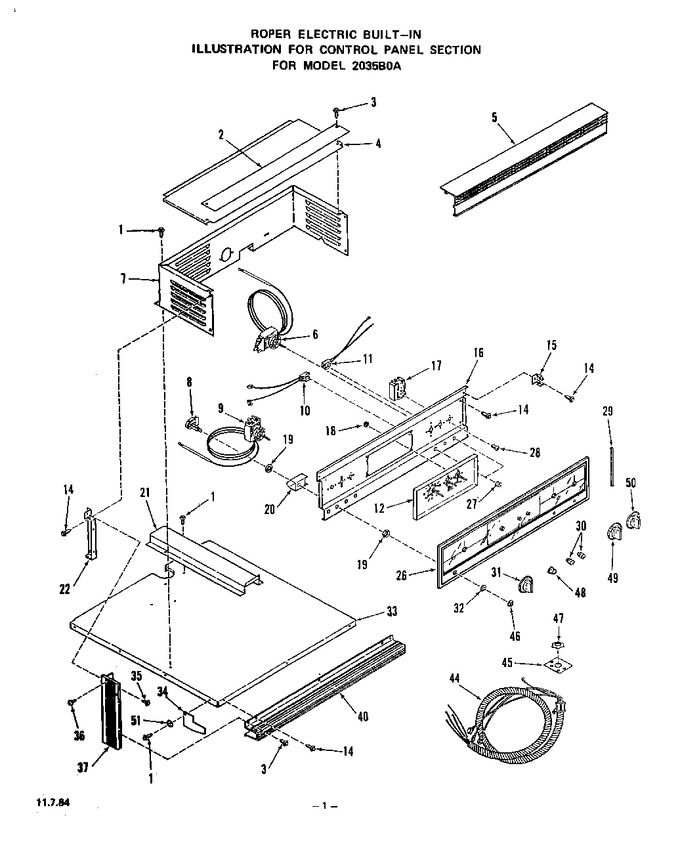

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	329544		Extension-top Cover		Appelez-nous	-
3	102429		Screw 10 - 24 X 3/8``		Appelez-nous	-
4	328038		Top Cover-control Housing		Appelez-nous	-
5	328837		Trim		Appelez-nous	-
6	326542		Thermostat-upper Oven		Appelez-nous	-
7	327989		Control Housing		Appelez-nous	-
8	298794		Push Switch-oven Light		Appelez-nous	-
9	320938		Thermostat-lower Oven		Appelez-nous	-
10	282719		Indicator Light-lower Oven		Appelez-nous	-
11	327448		Indicator Light-upper Oven		Appelez-nous	-
12	283296		Clock Motor		Appelez-nous	-
12	329219		Clock W/1 Hr. Timer		Appelez-nous	-
14	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
15	328863		Retainer-glass (rt. Or Lt.)		Appelez-nous	-
16	327979		Control Mounting Panel		Appelez-nous	-
17	326325		Selector Switch		Appelez-nous	-
18	74056		Keps Nut 10-24		Appelez-nous	-
19	236129		Lock Nut		Appelez-nous	-
20	291351		Shield-switch		Appelez-nous	-
21	327990		Wire Cover		Appelez-nous	-
22	328061		Support-control Panel (left)		Appelez-nous	-
22	328060		Support-control Panel (right)		Appelez-nous	-
26	329222		Control Panel Glass		Appelez-nous	-
27	114003		Lens-indicator Light (2 Req.)		Appelez-nous	-
28	78565		Screw 8-32x3/16``		Appelez-nous	-
29	328958		End Trim-control Panel Glass (rt. Or Lt.)		Appelez-nous	-
30	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
31	329447		Knob-lower Thermostat		Appelez-nous	-
32	104838		Washer		Appelez-nous	-
33	329129		Cabinet Top		Appelez-nous	-
34	312395		Heat Shield (lt. Or Rt.)		Appelez-nous	-
35	293121		Screw 6-32x1/4``		Appelez-nous	-
36	299766		Screw 6-32 X 1/2``		Appelez-nous	-
37	327991		Side Trim-control Panel (right)		Appelez-nous	-
37	327992		Side Trim-control Panel (left)		Appelez-nous	-
40	328782		Trim-control Panel		Appelez-nous	-
44	329285		Harness Conduit		Appelez-nous	-
45	294983		Plate (for Key 44)		Appelez-nous	-
46	87403		Knurled Nut		Appelez-nous	-
47	110340		Nut (for Key 44)		Appelez-nous	-
48	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
49	329531		Knob-upper Oven Thermostat		Appelez-nous	-
50	329532		Knob-selector Switch		Appelez-nous	-
51	106462		Washer		Appelez-nous	-
