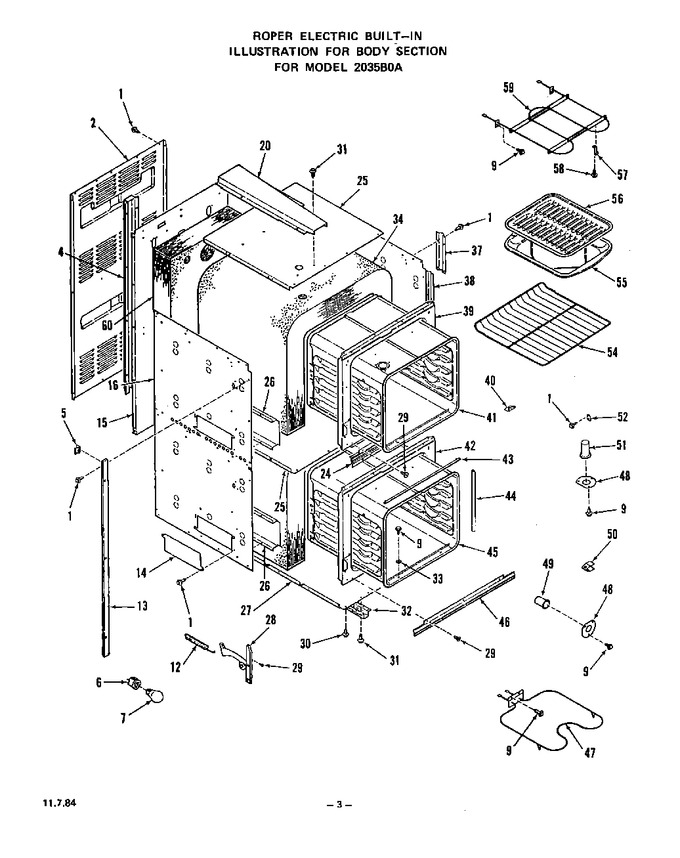

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	328090		Cabinet Back		Appelez-nous	-
4	328148		Rear Oven Vent Box		Appelez-nous	-
5	328077		Spacer (6 Req.)		Appelez-nous	-
6	87883		Holder-oven Light Bulb (up. & Lo. Oven)		Appelez-nous	-
7	DA96-01243C		Oven Light Bulb (up. & Lo. Oven)   (Replaces: 111257)				$ 160.00
9	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 193.45
12	328962		Spring-oven Door (4req.)		Appelez-nous	-
13	328070		Side Trim (lt. Or Rt.)		Appelez-nous	-
14	328112		Cover Plate (4 Req.)		Appelez-nous	-
15	328083		Main Back		Appelez-nous	-
16	328085		Cabinet Side-lt. Or Rt.		Appelez-nous	-
20	328052		Vent Box		Appelez-nous	-
24	328774		Center Front Trim		Appelez-nous	-
25	327963		Insulation Retainer		Appelez-nous	-
26	328071		Door Spring Insulation Retainer (lt. Or Rt.)		Appelez-nous	-
27	327948		Cabinet Bottom		Appelez-nous	-
28	328024		Hinge (right (2 Req.))		Appelez-nous	-
28	328025		Hinge (left (2 Req.))		Appelez-nous	-
29	112013		Screw 10-32 X 5/8``		Appelez-nous	-
30	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
31	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
32	328042		Bottom Channel-lt. Or Rt.		Appelez-nous	-
33	106462		Washer		Appelez-nous	-
34	328797		Insulation-oven Top & Sides (1 Piece) (up.& Lo Oven		Appelez-nous	-
37	324352		Raceway		Appelez-nous	-
38	325532		Raceway		Appelez-nous	-
39	328730		Front Frame-up. Oven		Appelez-nous	-
40	304835		Cover-lo. & Up. Oven		Appelez-nous	-
41	328728		Upper Oven Body		Appelez-nous	-
42	329340		Front Frame-lo. Oven		Appelez-nous	-
43	329151		Top Seal-oven Door (lo. & Up. Oven)		Appelez-nous	-
44	329205		Side Seal-oven Door (rt. Or Lt.) (lo. & Up. Oven)		Appelez-nous	-
45	329148		Lower Oven Body		Appelez-nous	-
46	328000		Lower Trim		Appelez-nous	-
47	328113		Bake Element-up.& Lo. Oven		Appelez-nous	-
48	328303		Clamp-oven Vent		Appelez-nous	-
49	294679		Vent Tube-lower Oven		Appelez-nous	-
50	291123		Retainer-thermostat Bulb (4 Req.)		Appelez-nous	-
51	329124		Vent Tube-upper Oven		Appelez-nous	-
52	237762		Cover Plate-thermostat Bulb (2 Req.)		Appelez-nous	-
54	328727		Oven Rack (2 Up. Oven & 1 Lo. Oven)		Appelez-nous	-
55	326301		Broiler Pan		Appelez-nous	-
56	326297		Broiler Pan Grid		Appelez-nous	-
57	324809		Support-broiler Element (2 Req)		Appelez-nous	-
58	69605		Screw 10abx3/8``		Appelez-nous	-
59	328115		Broiler Element (up. Oven)		Appelez-nous	-
60	328798		Insulation-oven Back & Bottom (1 Piece)		Appelez-nous	-
