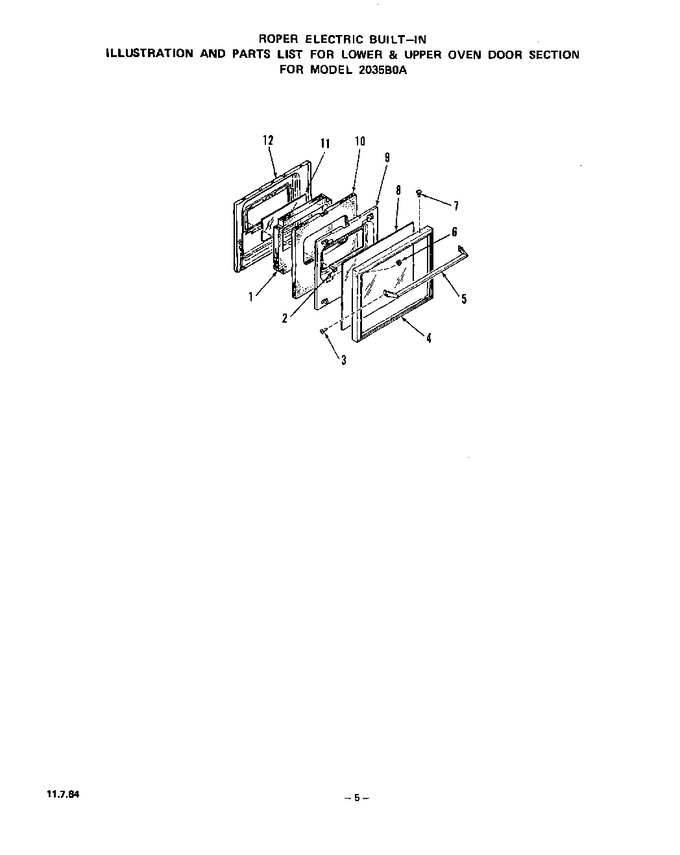

04 - Lower And Upper Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328800		Insulation		Appelez-nous	-
2	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
3	319447		Screw 8-32 X 1/2``		Appelez-nous	-
4	328080		Frame-oven Door		Appelez-nous	-
5	328062		Handle		Appelez-nous	-
6	239764		Keps Nut 8-32		Appelez-nous	-
7	327621		Screw 6-20x3/8``		Appelez-nous	-
8	328044		Oven Door Glass-outer		Appelez-nous	-
9	328153		Retainer-oven Door Insulation		Appelez-nous	-
10	328799		Insulation		Appelez-nous	-
11	328045		Oven Door Glass-inner		Appelez-nous	-
12	329154		Wire Harness		Appelez-nous	-
12	329226		Installation Guide		Appelez-nous	-
12	329228		Operating Guide		Appelez-nous	-
12	328731		Lining-oven Door		Appelez-nous	-
12	329231		Repair Parts Manual		Appelez-nous	-
12	326570		Electric Use & Care Guide		Appelez-nous	-
