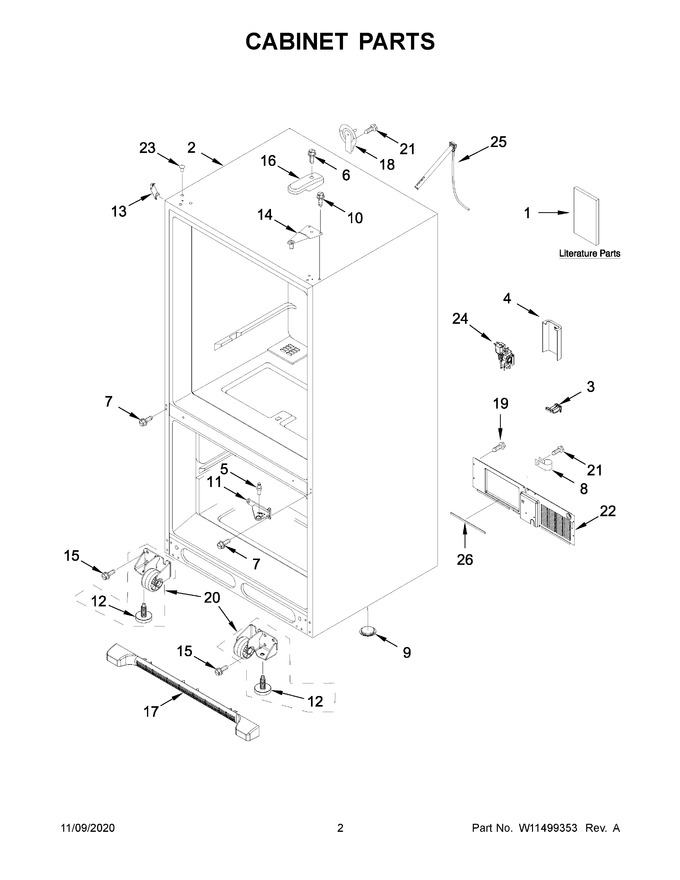

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11296635 | Use And Care Guide |
|
- | |||||
| 2 | NP | Following Parts Not Illustrated |
|
- | |||||
| 3 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.95 | ||||
| 4 | W10208592 | Cover, Valve |
|
- | |||||
| 5 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 6 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 7 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 8 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 9 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 10 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 11 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 69.79 | |||||
| 12 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 13 | 12587703W | Cover, Corner (white) |
|
$ 22.90 | |||||
| 14 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 15 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 16 | 67001014 | Cover, Hinge (white) (Replaces: 12477601W) |
|
$ 22.34 | |||||
| 17 | WPW10534166 | Assembly, Grille (includes Clips) (white) (Replaces: W10534166) |
|
Immediately | $ 76.61 | ||||
| 18 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 19 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 20 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 21 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 22 | W10210978 | Cover, Unit |
|
$ 201.78 | |||||
| 23 | WP67001130 | Plug, Button (white) (Replaces: 12246607) |
|
Immediately | $ 5.98 | ||||
| 24 | WPW10498976 | Valve, Inlet (Replaces: W10498976) |
|
Immediately | $ 126.10 | ||||
| 25 | W11817981 | Assembly, Fill Tube (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046935) |
|
Immediately | $ 91.27 | ||||
| 26 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 11A | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 11B | W11689473 | Hinge, Center (grey) (Replaces: 12607103AP) |
|
$ 69.79 | |||||
| 13A | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 13B | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 16A | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 49.71 | |||||
| 16B | W11106366 | Cover, Hinge (grey) (Replaces: 12477601AP) |
|
$ 75.82 | |||||
| 17A | WPW10534167 | Assembly, Grille (includes Clips) (black) (Replaces: W10534167) |
|
$ 91.42 | |||||
| 17B | WPW10534165 | Assembly, Grille (includes Clips) (grey) (Replaces: W10534165) |
|
Immediately | $ 60.90 | ||||
| 1A | W11306932 | Energy Guide |
|
- | |||||
| 1B | W11297588 | Tech Sheet |
|
- | |||||
| 20A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 23A | WP12246608 | Plug, Button (black) (Replaces: 12246608) |
|
Immediately | $ 8.15 | ||||
| 23B | WP12246610 | Plug, Button (grey) (Replaces: 12246610) |
|
Immediately | $ 8.15 |
