SELECT A DIAGRAM
New Model Search:

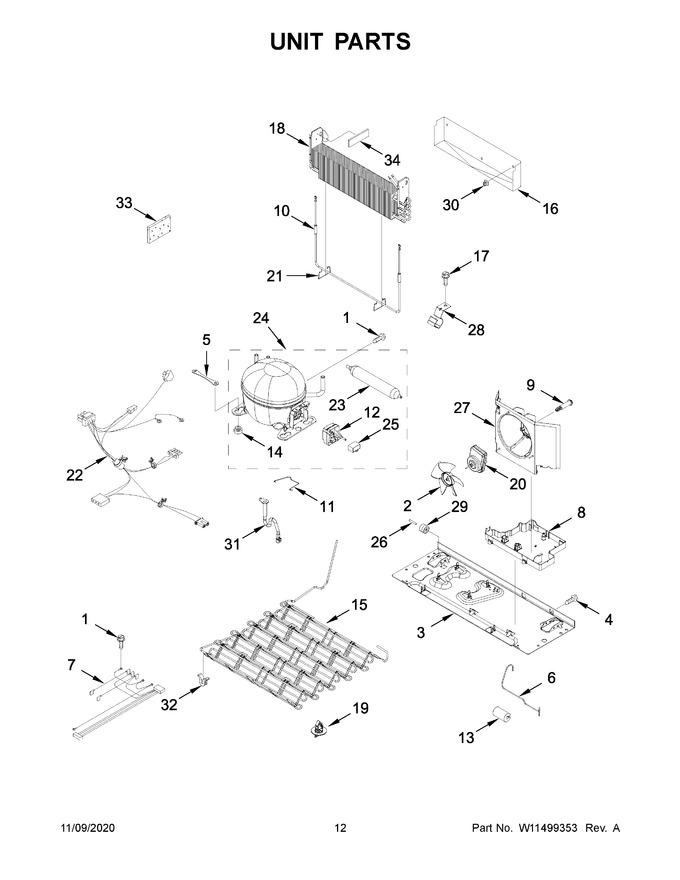

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W10480107 | Basepan |
|
$ 140.48 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 5 | W10236396 | Strap, Compressor |
|
Immediately | $ 19.82 | ||||
| 6 | W11566599 | Tube, Discharge (Replaces: W11372725) |
|
$ 65.94 | |||||
| 7 | W11260592 | Harness, Evaporator (includes Heater) (Replaces: W11050969) |
|
Immediately | $ 80.51 | ||||
| 8 | WPW10655367 | Pan, Drain (Replaces: W10655367) |
|
Immediately | $ 85.17 | ||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 12.65 | |||||
| 10 | WP12729127 | Heater, Evaporator (Replaces: 12729127) |
|
Immediately | $ 109.73 | ||||
| 11 | W11092534 | Strap, Bale (Replaces: W10216075) |
|
$ 11.32 | |||||
| 12 | W10873801 | Device, Start (Replaces: W10796752) |
|
Immediately | $ 92.02 | ||||
| 13 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.70 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.19 | ||||
| 15 | W11353139 | Condenser |
|
$ 203.49 | |||||
| 16 | W11337775 | Tray, Drip (Replaces: W10292801) |
|
Immediately | $ 94.35 | ||||
| 17 | 12992101 | Screw |
|
- | |||||
| 18 | W10920993 | Evaporator (Replaces: W10662565) |
|
Immediately | $ 363.66 | ||||
| 19 | W10815863 | Clip, Condenser |
|
Immediately | $ 38.72 | ||||
| 20 | W11613295 | Motor, Condenser Fan (Replaces: W11373924) |
|
Immediately | $ 136.84 | ||||
| 21 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 141.12 | |||||
| 22 | W11218258 | Harness, Unit (includes Power Cord) |
|
$ 139.02 | |||||
| 23 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 24 | W10233960 | Compressor (Replaces: W10879296) |
|
Immediately | $ 513.66 | ||||
| 25 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 26 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.52 | ||||
| 27 | W11556315 | Shroud, Condenser Fan (Replaces: W10189184) |
|
$ 79.66 | |||||
| 28 | W10281329 | Clip, Drier |
|
$ 13.08 | |||||
| 29 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 30 | 10623002 | Clip, Evaporator |
|
$ 11.53 | |||||
| 31 | W10619951 | Extension, Drain (Replaces: W10622098) |
|
Immediately | $ 42.39 | ||||
| 32 | WPW10137529 | Grommet, Condenser (Replaces: W10137529) |
|
$ 8.34 | |||||
| 33 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 34 | W11451451 | Gasket, Foam (Replaces: W11244122) |
|
$ 12.41 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 91.35 | ||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 130.71 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 |
