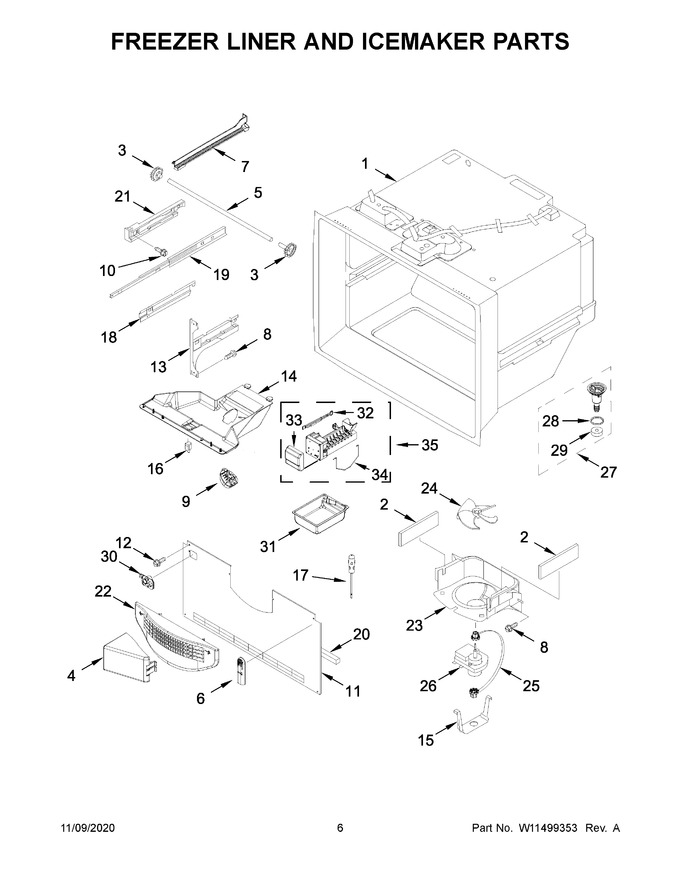

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Following Parts Not Illustrated |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.68 | ||||
| 3 | 12002497 | Gear |
|
Immediately | $ 22.51 | ||||
| 4 | W10157765 | Diverter, Air |
|
$ 88.43 | |||||
| 5 | W10802329 | Shaft, Rack |
|
$ 109.86 | |||||
| 6 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.82 | |||||
| 7 | W11489993 | Rack, Side (left Hand) (Replaces: W11309374) |
|
$ 22.34 | |||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 9 | W11602886 | Light Module, Led (Replaces: W11251749) |
|
$ 42.63 | |||||
| 10 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 7.97 | ||||
| 11 | WPW10308414 | Cover, Evaporator (Replaces: W10308414) |
|
$ 234.80 | |||||
| 12 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 13 | WPW10330991 | Bracket, Door (left Hand) (Replaces: W10330991) |
|
$ 156.49 | |||||
| 14 | WPW10277025 | Module, Light (Replaces: W10277025) |
|
$ 128.00 | |||||
| 15 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 17 | 12002355 | Thermistor (Replaces: 12791409SP) |
|
Immediately | $ 47.36 | ||||
| 18 | WPW10280608 | Cradle, Basket (left Hand) (Replaces: W10280608) |
|
$ 87.76 | |||||
| 19 | W11658402 | Slide, Door (Replaces: W10120018) |
|
Immediately | $ 127.51 | ||||
| 20 | A3189394 | Gasket, Bottom |
|
$ 27.37 | |||||
| 21 | WPW10284684 | Adapter, Side (left Hand) (Replaces: W10284684) |
|
Immediately | $ 39.77 | ||||
| 22 | WPW10175909 | Grille, Freezer Air (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evaporator Fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W10121318 | Grommet |
|
$ 48.38 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 78.75 | ||||
| 27 | W10815413 | Assembly, Drain Funnel (Replaces: W10662407) |
|
Immediately | $ 49.05 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 29 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.41 | |||||
| 30 | W11448709 | Guide, Fill Tube (Replaces: W11261524) |
|
$ 24.64 | |||||
| 31 | WPW10171529 | Pan, Ice (Replaces: W10182748) |
|
Immediately | $ 180.52 | ||||
| 32 | W10886932 | Harness, Icemaker Wire (Replaces: W10793621) |
|
Immediately | $ 133.51 | ||||
| 33 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 8.40 | ||||
| 34 | W11285509 | Arm, Shut Off (Replaces: W11260635) |
|
$ 94.00 | |||||
| 35 | W10884390 | Assembly, Icemaker (complete) (Replaces: W10793298) |
|
Immediately | $ 142.52 | ||||
| 13A | WPW10330993 | Bracket, Door (right Hand) (Replaces: W10330993) |
|
$ 158.18 | |||||
| 18A | WPW10280613 | Cradle, Basket (right Hand) (Replaces: W10280613) |
|
$ 87.76 | |||||
| 21A | WPW10284685 | Adapter, Side (right Hand) (Replaces: W10284685) |
|
$ 40.04 | |||||
| 7A | W11489994 | Rack, Side (right Hand) (Replaces: W11309377) |
|
$ 22.34 |
