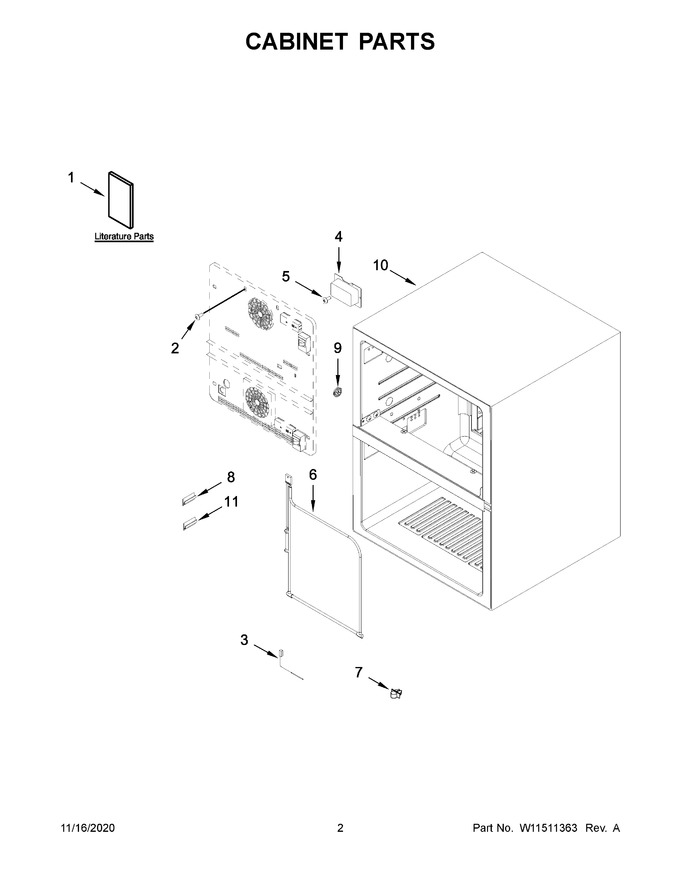

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Upper Drawer Parts


05 - Lower Drawer Parts


06 - Unit Parts


07 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741575		Use & Care Guide		Appelez-nous	-
2	W10774183		Screw		Appelez-nous	-
3	W11573590		Defrost Sensor   (Replaces: W10772858)				$ 66.17
4	W10788689		Cover		Appelez-nous	-
5	4344826		Screw				$ 16.70
6	W10281315		Thermal Fuse Assembly				$ 362.71
7	W10238022		Clip, Bushing		Appelez-nous	-
8	W10304193		Clip, Defrost Heater		Appelez-nous	-
9	W10621514		Liner Bushing				$ 31.71
10	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
11	W10721447		Wire Support Tape		Appelez-nous	-
1A	W10772894		Tech Sheet		Appelez-nous	-
1B	W10789520		Energy Guide		Appelez-nous	-
