01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Upper Drawer Parts
05 - Lower Drawer Parts
06 - Unit Parts
07 - Icemaker Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

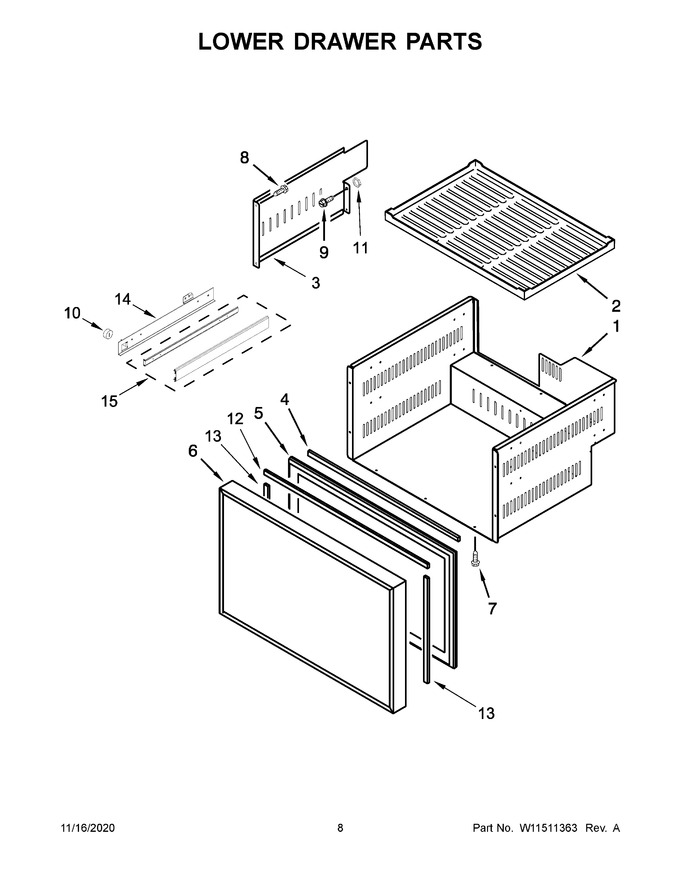

| 1 | W10789535 | Drawer Box Assembly, Bottom |
|
$ 384.03 | |||||
| 2 | W10622026 | Mat, Lower Drawer |
|
$ 185.02 | |||||
| 3 | W10796446 | Bottom Drawer Partition |
|
- | |||||
| 4 | W10281317 | Cold Air Seal |
|
- | |||||
| 5 | W11625065 | Gasket (Replaces: W10775534) |
|
$ 108.18 | |||||
| 6 | W10789536 | Bottom Foamed Door Assembly |
|
- | |||||
| 7 | W10204808 | Screw |
|
- | |||||
| 8 | W10204809 | Screw |
|
- | |||||
| 9 | W10204810 | Screw |
|
- | |||||
| 10 | W10624158 | Bumper Support |
|
$ 22.86 | |||||
| 11 | W10204920 | Nut |
|
- | |||||
| 12 | W10204889 | Door Gasket, Long |
|
- | |||||
| 13 | W10204897 | Door Gasket, Short |
|
- | |||||
| 14 | W10789525 | Support Shelf, Left Hand |
|
$ 294.81 | |||||
| 15 | WPW10233777 | Rail Assembly (Replaces: W10233777) |
|
$ 349.36 | |||||
| 14A | W10789528 | Support Shelf, Right Hand |
|
$ 345.68 |
