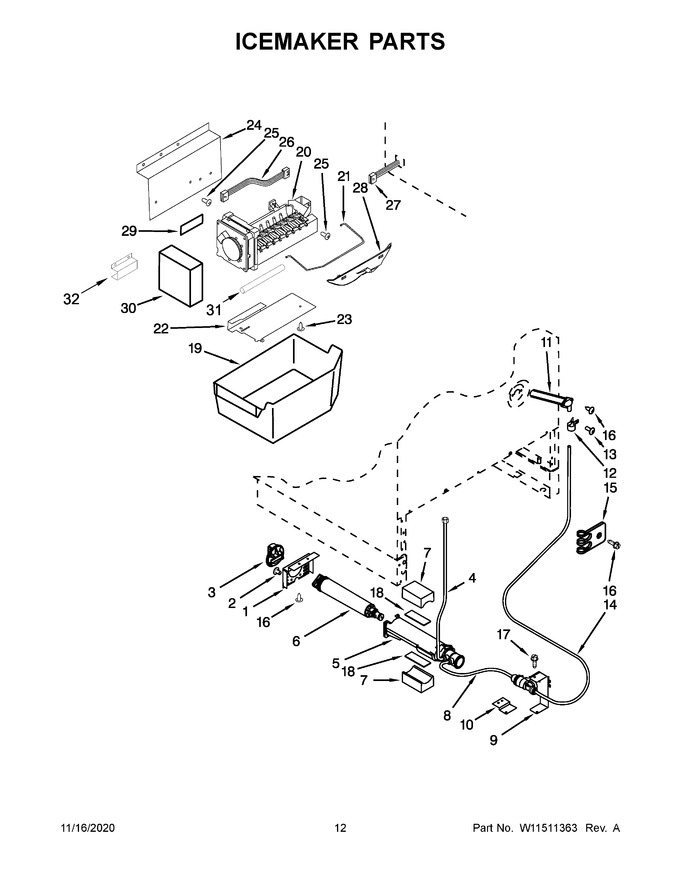

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10281555		Bracket, Filter		Appelez-nous	-
2	W10281556		Screw, Support		Appelez-nous	-
3	WP2186494B		Cap, Water Filter   (Replaces: W10281557)			Immediately	$ 55.86
4	8201597		Tube, Inlet   (Replaces: W10281558)			Immediately	$ 83.70
5	WP2225521		Housing, Filter   (Replaces: W10281559)			Immediately	$ 147.92
6	W10281560		Water Filter		Appelez-nous	-
7	W10281561		Block, Filter		Appelez-nous	-
8	W10772928		Tube, Water   (Replaces: W10281562)				$ 130.66
9	WP2307650		Valve, Solenoid   (Replaces: W10281564)			Immediately	$ 203.52
10	W10281565		Bracket, Valve		Appelez-nous	-
11	WP2196157		Fitting   (Replaces: W10281566)			Immediately	$ 12.59
12	WP488878		Tube Clamp   (Replaces: W10281567)				$ 12.18
13	W10281585		Screw		Appelez-nous	-
14	W10281586		Tube, Water			Immediately	$ 75.68
15	W10281587		Tube Clamp		Appelez-nous	-
16	4344825		Screw		Appelez-nous	-
17	4344832		Screw		Appelez-nous	-
18	W10281589		Tape, Filter		Appelez-nous	-
19	W11625904		Pan, Ice Cube   (Replaces: W10281544)				$ 67.83
20	4317943		Icemaker   (Replaces: W10281545)			Immediately	$ 183.45
21	W10281546		Shut Off Arm				$ 118.08
22	2256178		Heat Shield   (Replaces: W10281547)		Appelez-nous	-
23	W10205069		Screw		Appelez-nous	-
24	W10488628		Bracket				$ 295.61
25	W10281549		Screw		Appelez-nous	-
26	W10772924		Harness, Defrost Heater				$ 136.46
27	W10281551		Harness Extension		Appelez-nous	-
28	W10281552		Arm Extension				$ 211.27
29	W10281553		Protection Sheet		Appelez-nous	-
30	WPW10289690		Cover, Icemaker   (Replaces: W10289690)			Immediately	$ 8.82
31	W10304200		Tube, Inlet		Appelez-nous	-
32	W10304190		Cover, Wire		Appelez-nous	-
