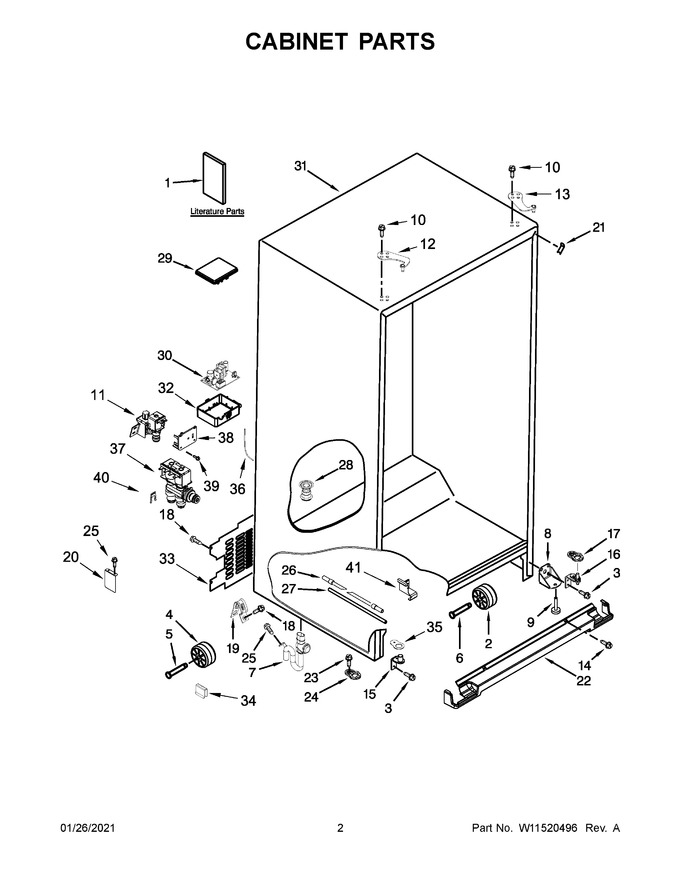

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10768947		Use & Care Guide		Appelez-nous	-
2	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
3	WPW10297485		Screw   (Replaces: W10297485)				$ 8.40
4	12477102		Roller			Immediately	$ 7.38
5	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
6	W11208384		Rivet, Roller   (Replaces: 981125)				$ 18.73
7	W11519143		Tube, Drain   (Replaces: W11293073)				$ 38.35
8	W11266052		Bracket, Foot   (Replaces: W10900758)				$ 66.31
9	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
10	WPW10308751		Screw (black)   (Replaces: W10308751)				$ 8.84
11	W11512399		Valve, Inlet   (Replaces: W11451511)			Immediately	$ 51.22
12	W10901052		Hinge, Top (freezer) (black)				$ 76.64
13	W11568758		Hinge, Top (refrigerator) (black)   (Replaces: W10901047)				$ 25.62
14	WP98008545		Screw (black)   (Replaces: W10308487)				$ 18.60
15	W11269265		Hinge, Bottom (freezer) (black)   (Replaces: W11126854)				$ 70.83
16	W11311416		Hinge, Bottom (refrigerator) (black)   (Replaces: W11084348)				$ 70.98
17	W11311686		Closer, Door (refrigerator) (black)   (Replaces: W10877807)				$ 14.02
18	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
19	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 22.12
20	W10336736		Cover, Roller		Appelez-nous	-
21	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 22.14
22	WPW10713158		Grille (black)   (Replaces: W10713158)				$ 98.42
23	WP489483		Screw   (Replaces: W10142234)				$ 11.41
24	W10770895		Closer, Door (freezer) (black)				$ 15.78
25	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
26	WPW10279882		Tube, Filter Inlet   (Replaces: W10279882)				$ 114.23
27	WPW10279885		Tube, Filter Outlet   (Replaces: W10279885)				$ 128.74
28	W10247979		Fitting, Drain				$ 67.82
29	W11226688		Lid, Hv Box   (Replaces: 12957702)				$ 85.16
30	W11620204		Control, Electronic (power Supply)   (Replaces: W11483607)			Immediately	$ 332.65
31	NP		Pedestal (refer To Color Variation Parts Page)		Appelez-nous	-
32	WPW10247993		Box, Control   (Replaces: W10247993)				$ 119.11
33	W11453073		Cover, Unit				$ 68.25
34	W11545866		Clip, Axle Retainer   (Replaces: 2223388)				$ 11.88
35	W11788876		Shim, Cam Closer   (Replaces: W10709916)		Appelez-nous	-
36	W11620106		Tube, Water   (Replaces: W10691730)				$ 117.84
37	WPW10341320		Assembly, Dual Water Valve   (Replaces: W10341320)			Immediately	$ 276.86
38	W10847867		Bracket, Water Valve   (Replaces: W10237915)				$ 80.75
39	WPW10141625		Screw   (Replaces: W10141625)				$ 22.22
40	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 14.90
41	W10499011		Assembly, Bracket			Immediately	$ 69.65
12A	W11590581		Hinge, Top (freezer) (grey)   (Replaces: W10901054)				$ 24.93
13A	W11409290		Hinge, Top (refrigerator) (grey)   (Replaces: W10901049)				$ 70.48
14A	WPW10308489		Screw (grey)   (Replaces: W10308489)			Immediately	$ 8.18
15A	W11293374		Hinge, Bottom (freezer) (grey)   (Replaces: W11126848)				$ 73.32
16A	W11292872		Hinge, Bottom (refrigerator) (grey)   (Replaces: W11084346)				$ 72.09
17A	W11311687		Closer, Door (refrigerator) (grey)   (Replaces: W10877804)				$ 14.07
1A	W11461592		Tech Sheet		Appelez-nous	-
1B	W11374276		Energy Guide		Appelez-nous	-
21A	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 8.07
22A	WPW10713153		Grille (grey)   (Replaces: W10713153)			Immediately	$ 135.52
24A	W10876191		Closer, Door (freezer) (grey)   (Replaces: W10770893)				$ 17.98
40A	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 14.89
