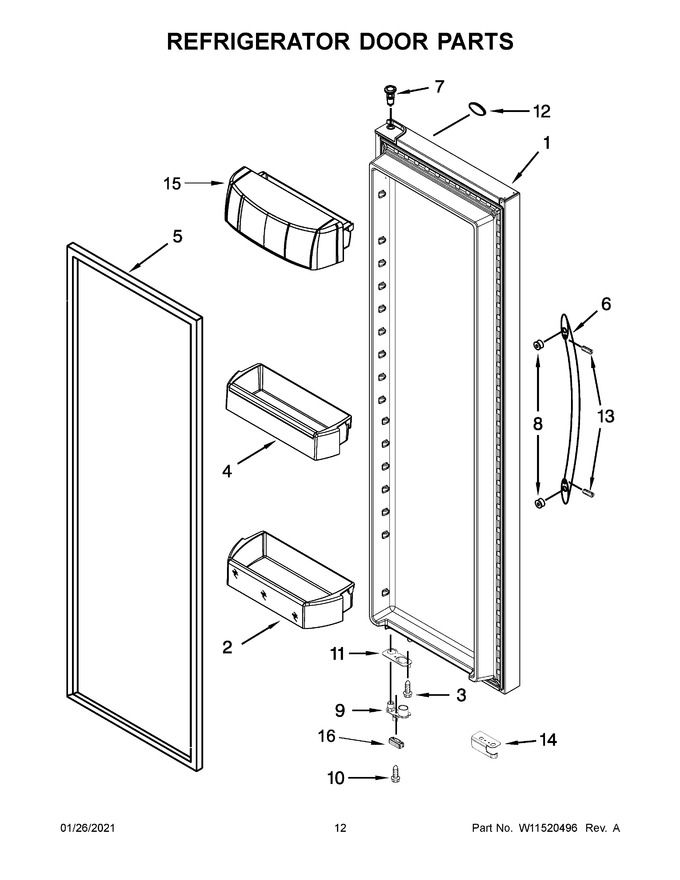

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11395845 | Door, Refrigerator (includes Item 5) (black Stainless) (Replaces: W11245972) |
|
- | |||||
| 2 | WPW10527272 | Door Bin, Gallon (Replaces: W10527272) |
|
$ 83.80 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | WPW10308388 | Door Bin, Shallow (Replaces: W10308388) |
|
$ 77.97 | |||||
| 5 | W11625680 | Gasket, Door (black) (Replaces: W10249914) |
|
- | |||||
| 6 | W11450223 | Handle (black Stainless) (Replaces: W11289639) |
|
Immediately | $ 188.98 | ||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 9 | WPW10257201 | Closer, Upper Cam Door (black) (Replaces: W10257201) |
|
$ 12.93 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10888898) |
|
$ 80.24 | |||||
| 12 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 13 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 14 | W10789145 | Cover, Door Stop (black) |
|
$ 19.37 | |||||
| 15 | WPW10324760 | Assembly, Utility Compartment (Replaces: W10324760) |
|
$ 85.60 | |||||
| 16 | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 14A | W11661847 | Cover, Door Stop (grey) (Replaces: W10789147) |
|
Immediately | $ 31.71 | ||||
| 16A | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 | ||||
| 1A | W11395843 | Door, Refrigerator (includes Item 5) (stainless) (Replaces: W11245964) |
|
- | |||||
| 5A | W10355588 | Gasket, Door (grey) (Replaces: W10249918) |
|
$ 319.21 | |||||
| 6A | W11542651 | Handle (stainless) (Replaces: W11289640) |
|
Immediately | $ 140.99 | ||||
| 9A | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 13.18 |
