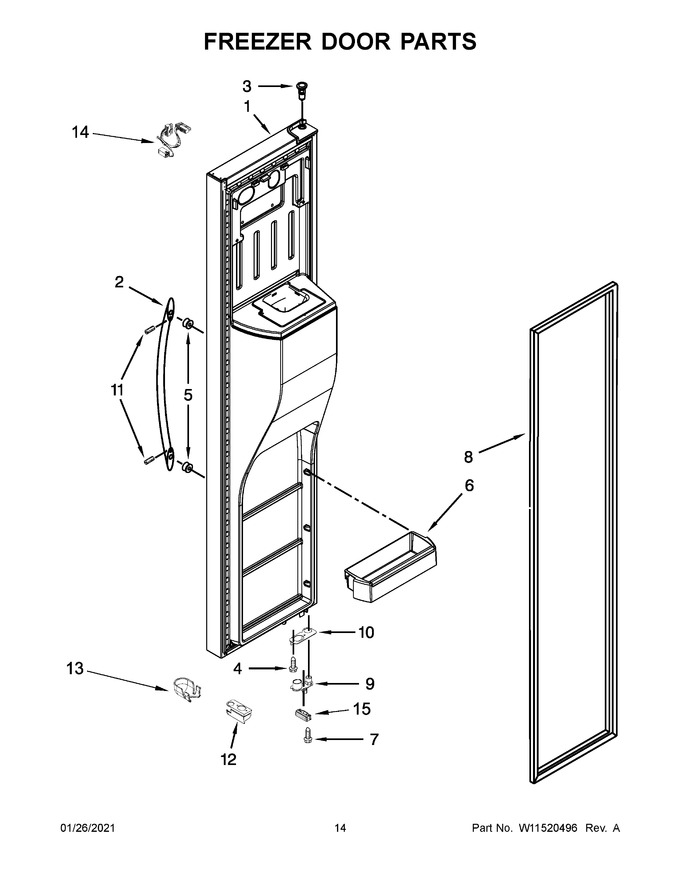

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11395872		Door, Freezer (includes Item 8 And Dispenser Front Parts) (black Stainless)   (Replaces: W11368693)		Appelez-nous	-
2	W11450223		Handle (black Stainless)   (Replaces: W11045529)			Immediately	$ 188.98
3	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 8.15
4	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
5	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
6	WPW10308389		Door Bin   (Replaces: W10308389)				$ 70.69
7	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
8	W10249915		Gasket, Door (black)		Appelez-nous	-
9	W11607100		Closer, Upper Cam Door (black)   (Replaces: W10257204)			Immediately	$ 13.98
10	W11293380		Bracket, Door Stop   (Replaces: W10910405)				$ 69.21
11	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
12	WPW10632062		Cover, Door Stop (grey)   (Replaces: W10632062)				$ 7.55
13	W10323148		Cover, Wire				$ 42.25
14	W11293361		Wire, Jumper   (Replaces: W10850872)				$ 140.89
15	W10407187		Bumper, Door (black)				$ 48.34
12A	W10632060		Cover, Door Stop (black)				$ 22.30
15A	W11573367		Bumper, Door (grey)   (Replaces: W10407188)			Immediately	$ 23.35
1A	W11395869		Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless)   (Replaces: W11368683)		Appelez-nous	-
2A	W11163764		Handle (stainless)   (Replaces: W11045530)			Immediately	$ 151.77
8A	W10355591		Gasket, Door (grey)   (Replaces: W10249919)			Immediately	$ 327.46
9A	WPW10257206		Closer, Upper Cam Door (grey)   (Replaces: W10257206)			Immediately	$ 13.18

    View Diagram in Separate Window       Print Part List
