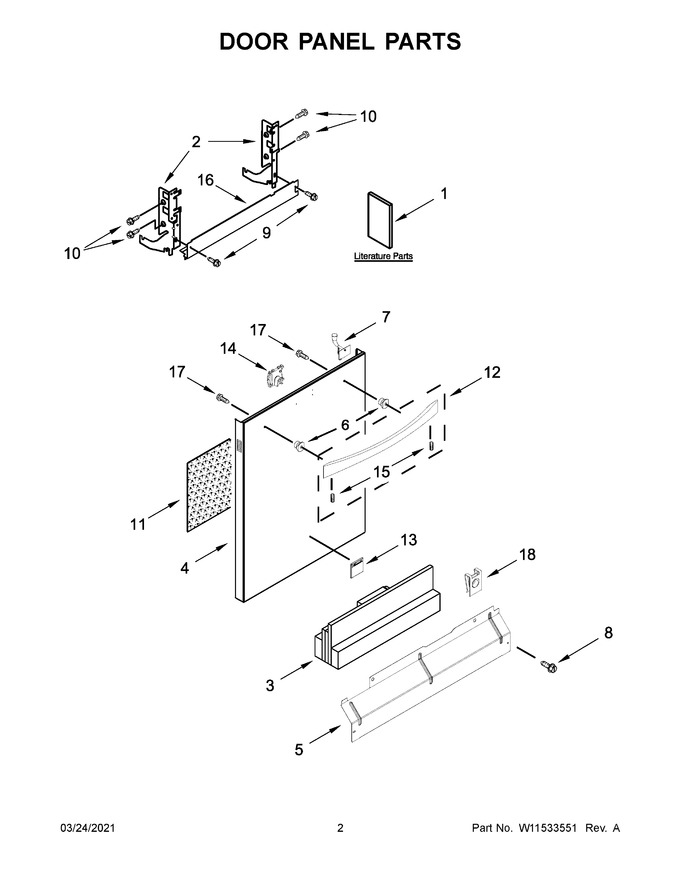

02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Third Level Rack And Track Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806907		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W11223838		Insulation, Four Layer   (Replaces: W10735304)			Immediately	$ 43.91
4	W11435873		Front Panel (includes 7, 13, & 14) (stainless)   (Replaces: W11030492)		Appelez-nous	-
5	W11763736		Panel, Access (black)   (Replaces: W10852733)			Immediately	$ 42.25
6	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 8.87
7	W10901145		Light Pipe   (Replaces: W10854504)				$ 77.23
8	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
12	W11558980		Handle Assembly (stainless)   (Replaces: W11290124)		Appelez-nous	-
13	W10403224		Nameplate (stainless)		Appelez-nous	-
14	W10692757		Barrel Nut, Front Panel				$ 16.01
15	W11126057		Screw   (Replaces: W10293906)		Appelez-nous	-
16	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
17	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
18	W10910629		U-nut   (Replaces: W10853886)				$ 8.64
1A	W11240054		Energy Guide		Appelez-nous	-
1B	W10857658		Use & Care Guide		Appelez-nous	-
1C	W11266096		Tech Sheet		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
