Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11842830 Dishrack, Upper   (Replaces: W10462394) In-Stock Immediately $ 179.58

2 W10380200 Handle, Dishrack Front (includes Nameplate) Appelez-nous -
3 W10810443 Handle, Dishrack Rear   (Replaces: W10462400) Appelez-nous -
4 W10727426 Tine Row   (Replaces: W10082821) In-Stock Immediately $ 85.10

5 WPW10082853 Clip, Pivot   (Replaces: W10082853) In-Stock Immediately $ 5.40

6 WPW10077840 Positioner, Dual   (Replaces: W10077840) Special Order $ 8.30

7 WPW10082649 Cupshelf Assembly   (Replaces: W10082649) In-Stock Immediately $ 109.45

8 W11231659 Track Assembly (left Hand)   (Replaces: W10670007) Appelez-nous -
9 WPW10195840 Positioner, Adjuster   (Replaces: W10195840) In-Stock Immediately $ 51.32

10 WPW10546503 Adjuster Assembly   (Replaces: W10546503) In-Stock Immediately $ 43.81

11 WPW10588164 Adjuster, Housing Assembly (left Hand)   (Replaces: W10588164) In-Stock Immediately $ 16.84

12 WPW10250162 Cover, Adjuster   (Replaces: W10250162) In-Stock Immediately $ 7.61

13 WPW10195839 Strap, Tether Adjuster   (Replaces: W10195839) In-Stock Immediately $ 30.81

14 WPW10082848 Clip, Cupshelf   (Replaces: W10082848) In-Stock Immediately $ 8.27

15 WPW10158385 Clip, Stemware   (Replaces: W10158385) In-Stock Immediately $ 8.23

16 WPW10250160 Clip, Adjuster   (Replaces: W10250160) In-Stock Immediately $ 40.55

17 W10919676 Clip, Dispenser Guard   (Replaces: W10752617) In-Stock Immediately $ 10.00

18 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

19 WPW10309090 Screw   (Replaces: W11364953) In-Stock Immediately $ 76.86

11A WPW10588165 Adjuster, Housing Assembly (right Hand)   (Replaces: W10588165) In-Stock Immediately $ 54.81

8A W11231657 Track Assembly (right Hand)   (Replaces: W10670006) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

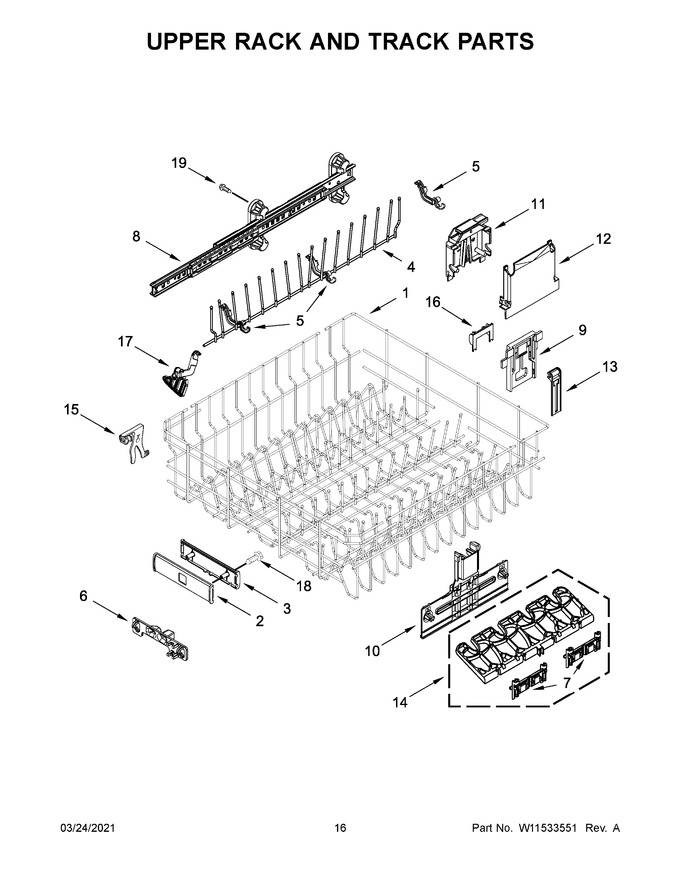

Diagram for 66514815N613
