Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11836636 Dishrack, Lower   (Replaces: W10525645) In-Stock Immediately $ 177.40

2 WPW10195417 Wheel & Transport Assembly   (Replaces: W10195417) In-Stock Immediately $ 46.49

3 W10756125 Silverware Basket Appelez-nous -
4 WPW10082852 Lid, Center   (Replaces: W10082852) Special Order $ 10.29

5 W10728160 Tine Row, Fold Down   (Replaces: W10082907) In-Stock Immediately $ 53.34

6 WPW10107150 Retainer, Tine Row (combo)   (Replaces: W10107150) In-Stock Immediately $ 8.27

7 W10756122 Basket, Silverware Side Appelez-nous -
8 WP8562069 Holder, Knife   (Replaces: 8562069) Special Order $ 49.97

9 W10380204 Handle, Dishrack Front Appelez-nous -
10 W10480952 Handle, Dishrack Rear Appelez-nous -
11 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

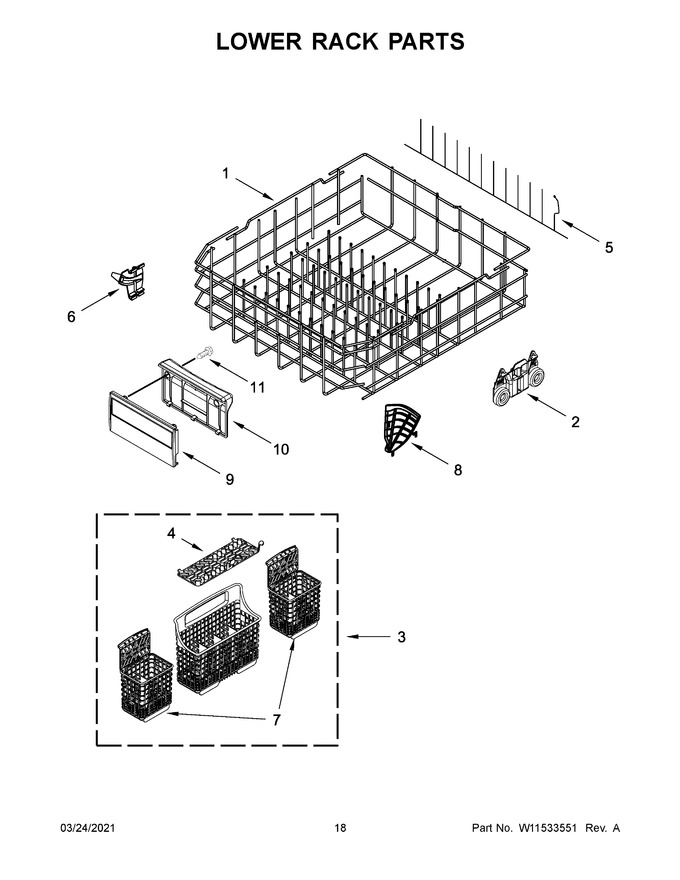

    View Diagram in Separate Window     Print Icon   Print Part List
