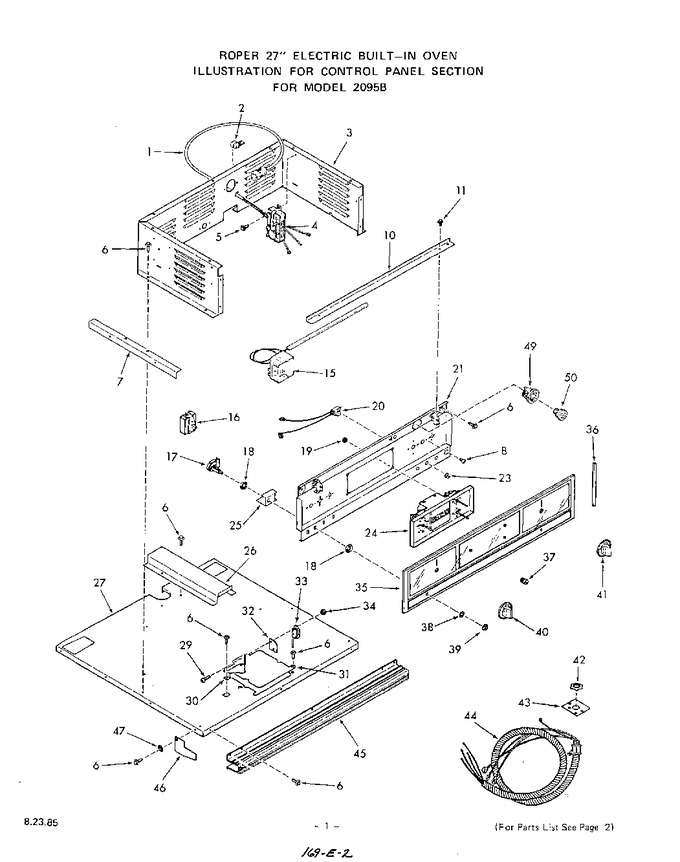

02 - Control Panel
03 - Oven Door Lock
04 - Lower Body
05 - Oven Door
06 - Trim And Micro Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 322826 | Cord W/plug |
|
- | |||||
| 2 | 311112 | Strain Relief |
|
- | |||||
| 3 | 323720 | Control Housing |
|
- | |||||
| 4 | 239802 | Oven Relay |
|
- | |||||
| 5 | 102429 | Screw 10 - 32 X 3/8`` |
|
- | |||||
| 6 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 8.63 | |||||
| 7 | 315596 | Stiffener-lt. Or Rt. |
|
- | |||||
| 8 | 78565 | Screw 8-32x3/16`` |
|
- | |||||
| 10 | 313980 | Shield-wires |
|
- | |||||
| 11 | 293121 | Screw 6-32x1/4`` |
|
- | |||||
| 15 | 324685 | Oven Thermostat |
|
- | |||||
| 16 | 326326 | Selector Switch |
|
- | |||||
| 17 | 298794 | Push Switch (oven & Panel Light) |
|
- | |||||
| 18 | 236129 | Lock Nut |
|
- | |||||
| 19 | 74056 | Keps Nut 10-24 |
|
- | |||||
| 20 | 329632 | Indicator Light |
|
- | |||||
| 21 | 323511 | Mounting Panel-controls |
|
- | |||||
| 23 | 114003 | Lens-indicator Light |
|
- | |||||
| 24 | 329383 | Clock W/1 Hr. Timer |
|
- | |||||
| 25 | 291351 | Shield-switch (2 Req) |
|
- | |||||
| 26 | 323663 | Wire Cover |
|
- | |||||
| 27 | 323718 | Cabinet Top |
|
- | |||||
| 29 | 229288 | Screw 4-40x3/4`` (2 Req) |
|
- | |||||
| 30 | 328862 | Bracket-micro Switch |
|
- | |||||
| 31 | 323652 | Cover Plate-lock |
|
- | |||||
| 32 | 327770 | Insulator |
|
- | |||||
| 33 | 311868 | Micro Switch - Lock |
|
- | |||||
| 34 | 306638 | Keps Nut 4-40 (2 Req) |
|
- | |||||
| 35 | 329428 | Control Panel Glass |
|
- | |||||
| 36 | 239565 | End Trim-control Panel Glass (rt Or Lt) |
|
- | |||||
| 37 | 109225 | Knob-clock (start & Stop Time) (3) |
|
- | |||||
| 38 | 104838 | Washer |
|
- | |||||
| 39 | 87403 | Knurled Nut |
|
- | |||||
| 40 | 329446 | Knob-selector Switch |
|
- | |||||
| 41 | 329445 | Knob-oven Thermostat |
|
- | |||||
| 42 | 110340 | Nut (for Key 44) |
|
- | |||||
| 43 | 294983 | Plate (for Key 44) |
|
- | |||||
| 44 | 311877 | Harness Conduit Asm. |
|
- | |||||
| 45 | 314284 | Lower Trim-control Panel |
|
- | |||||
| 46 | 312395 | Heat Shield (lt. Or Rt.) |
|
- | |||||
| 47 | 106462 | Washer |
|
- | |||||
| 49 | 277608 | Fuse Holder |
|
- | |||||
| 50 | DE81-09655A | Fuse-15 Amp. (Replaces: 106208) |
|
$ 125.72 |
