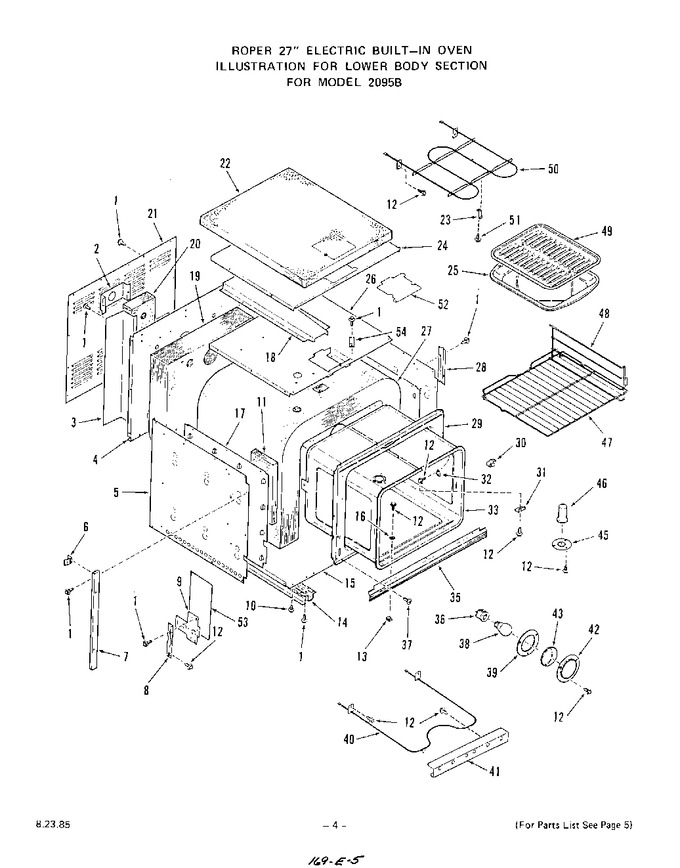

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3114884		Screw 10-32x7/16``		Appelez-nous	-
2	323630		Insulation Retainer-oven Light		Appelez-nous	-
3	314109		Side-air Channel (lt. Or Rt.)		Appelez-nous	-
4	323742		Main Back		Appelez-nous	-
5	323715		Left		Appelez-nous	-
5	323716		Right		Appelez-nous	-
6	311726		Spacer (4 Req)		Appelez-nous	-
7	311725		Side Trim-lt. Or Rt.		Appelez-nous	-
8	322611		Hinge Angle-lt. Or Rt.		Appelez-nous	-
9	322609		Hinge Box-lt. Or Rt.		Appelez-nous	-
10	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
11	279470		Insulation (lt. Or Rt.)		Appelez-nous	-
12	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 193.45
13	107956		Speed Nut 10-32		Appelez-nous	-
14	313970		Base-lt. Or Rt.		Appelez-nous	-
15	323710		Cabinet Bottom		Appelez-nous	-
16	106462		Washer		Appelez-nous	-
17	323636		Insulation Retainer-oven Side (lt. Or Rt.)		Appelez-nous	-
18	323640		Top Oven Vent Box		Appelez-nous	-
19	WP660579		Insulation-oven Back & Bottom   (Replaces: 311713)				$ 164.26
20	WP660579		Oven Light Insulation   (Replaces: 311715)				$ 164.26
21	323722		Cabinet Back		Appelez-nous	-
22	WP660579		Insulation-cabinet Top   (Replaces: 311714)				$ 164.26
23	324809		Broil Element Support		Appelez-nous	-
24	323646		Insulation Retainer-cabinet Top		Appelez-nous	-
25	326300		2095b0a Models		Appelez-nous	-
25	331592		2095b1a Models		Appelez-nous	-
26	323634		Insulation Retainer-oven Top		Appelez-nous	-
27	311712		Insulation Oven Top & Sides (1 Piece)		Appelez-nous	-
28	324352		Raceway		Appelez-nous	-
29	331666		2095b1a Models		Appelez-nous	-
29	325832		2095b0a Models		Appelez-nous	-
30	238052		Thermostat Bulb-retainer (2 Req)		Appelez-nous	-
31	304835		Cover		Appelez-nous	-
32	237762		Cover Plate-thermostat Bulb		Appelez-nous	-
33	325831		2095b0a Models		Appelez-nous	-
33	331651		2095b1a Models		Appelez-nous	-
35	313995		Lower Trim		Appelez-nous	-
36	87883		Holder-oven Light Bulb		Appelez-nous	-
37	112013		Screw 10-32 X 5/8``		Appelez-nous	-
38	DA96-01243C		Oven Light Bulb   (Replaces: 111257)				$ 160.00
39	229371		Gasket-oven Light		Appelez-nous	-
40	331164		Bake Element		Appelez-nous	-
41	325918		2095b0a Models		Appelez-nous	-
41	331670		2095b1a Models		Appelez-nous	-
42	229372		Lens Retainer-oven Light		Appelez-nous	-
43	114989		Oven Light Lens		Appelez-nous	-
45	328303		Oven Vent Clamp		Appelez-nous	-
46	WP660579		Oven Vent Tube   (Replaces: 311716)				$ 164.26
47	311735		Oven Rack (2 Req)		Appelez-nous	-
48	305350		Oven Rack Guide-rt. Or Lt.		Appelez-nous	-
49	326297		Broiler Pan Grid		Appelez-nous	-
50	ET342		Broil Element   (Replaces: 319526)				$ 49.95
51	69605		Screw 10abx3/8``		Appelez-nous	-
52	323648		Cover Plate-lock		Appelez-nous	-
53	114300		Insulation Cover		Appelez-nous	-
54	313627		Bracket		Appelez-nous	-
