Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 313075 Spring Appelez-nous -
2 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 8.63

3 288248 Screw 10-24x1/4`` Appelez-nous -
4 318379 Lock Handle Appelez-nous -
5 323363 Knob-lock Handle Appelez-nous -
6 313768 Screw 6-32x15/32`` Appelez-nous -
7 311869 Oven Door Lock Asm. (inc`s. Key 1) Appelez-nous -

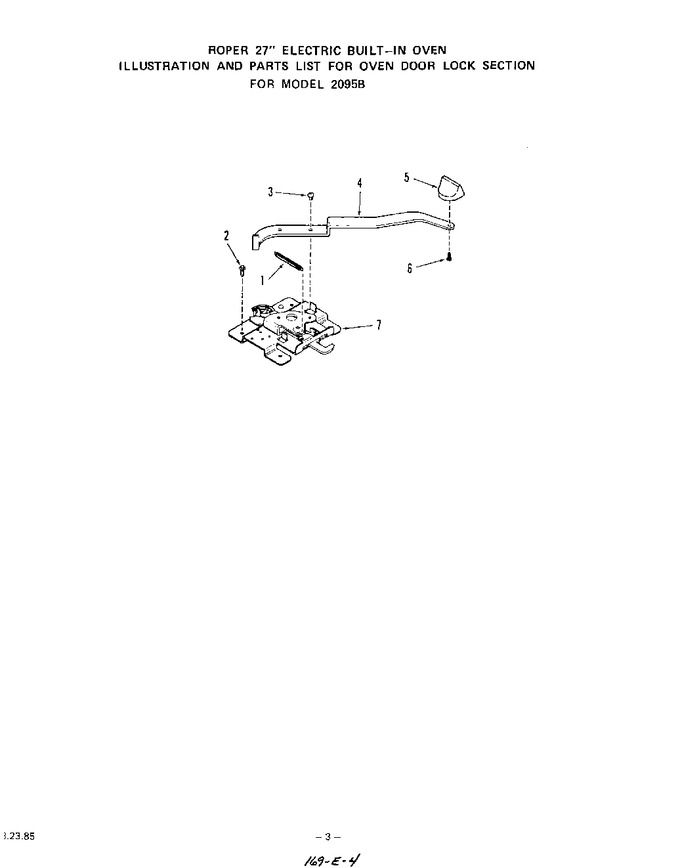

    View Diagram in Separate Window     Print Icon   Print Part List
