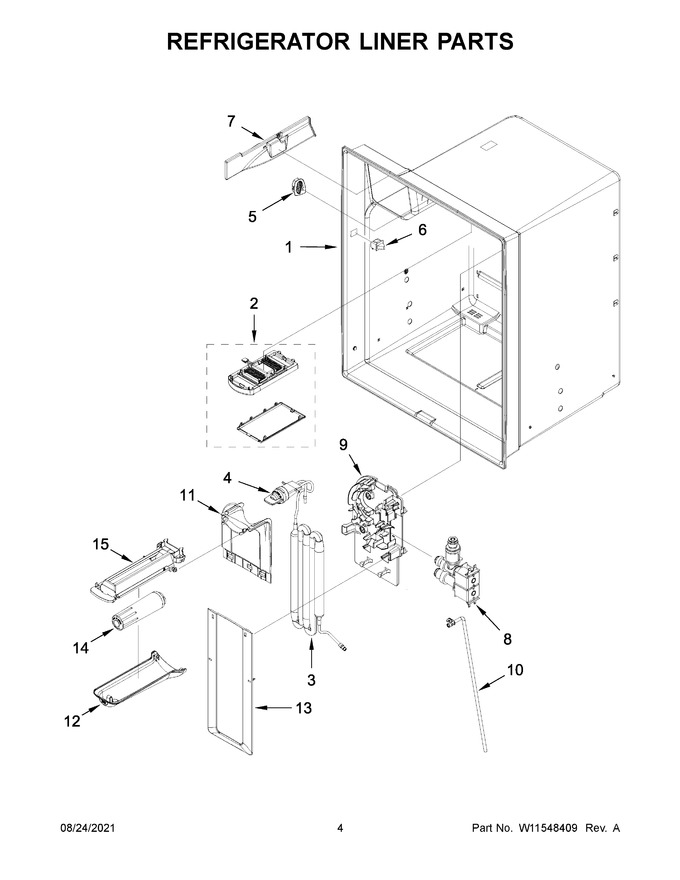

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 2 | W11527432 | Assembly, Upper Light (includes Led Module And Lens) (Replaces: W11387579) |
|
Immediately | $ 123.37 | ||||
| 3 | W11346622 | Assembly, Water Tank And Head (includes Bypass Cartridge) (Replaces: W11308017) |
|
Immediately | $ 146.52 | ||||
| 4 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 5 | W10555984 | Assembly, Air Grille |
|
Immediately | $ 40.09 | ||||
| 6 | W11396033 | Switch, Rocker (Replaces: W10847848) |
|
Immediately | $ 37.30 | ||||
| 7 | WPW10309869 | Cover, Wiring (Replaces: W10309869) |
|
$ 109.19 | |||||
| 8 | W11548535 | Valve, Water Inlet (Replaces: W11446814) |
|
Immediately | $ 81.45 | ||||
| 9 | WPW10334463 | Bracket, Water Tank And Valve (Replaces: W10334463) |
|
$ 59.70 | |||||
| 10 | W11666461 | Tube, Water (Replaces: W11367364) |
|
$ 84.17 | |||||
| 11 | 12960101 | Cover, Upper Water Tank |
|
$ 127.63 | |||||
| 12 | WP67006331 | Cover, Filter (Replaces: 12960301) |
|
Immediately | $ 112.73 | ||||
| 13 | 67006329 | Cover, Lower Water Tank (Replaces: 12960001) |
|
$ 189.48 | |||||
| 14 | EDR4RXD1B | Filter, Water (Replaces: W11256384) |
|
Immediately | $ 49.99 | ||||
| 15 | 67006325 | Bracket, Filter Base (Replaces: 12955901) |
|
Immediately | $ 100.37 |
