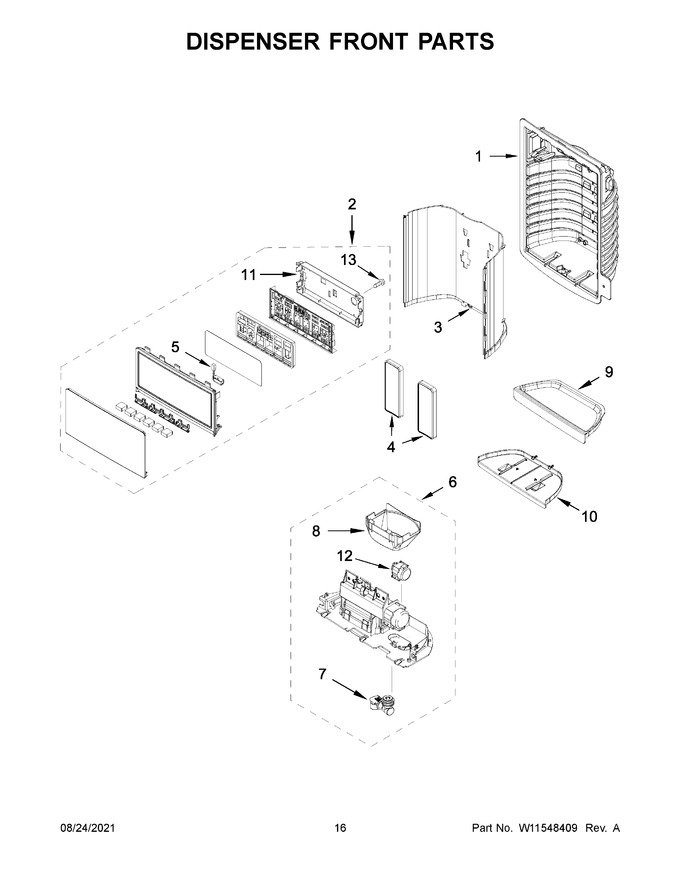

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 2 | W11556911 | Assembly, User Interface (stainless) (Replaces: W11324160) |
|
$ 378.61 | |||||
| 3 | W11045979 | Wall, Dispenser False (black Stainless) |
|
$ 50.00 | |||||
| 4 | W11661207 | Assembly, Pad (includes Blue Light) (black) (Replaces: W10353847) |
|
$ 66.19 | |||||
| 5 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 84.45 | |||||
| 6 | WPW10353552 | Assembly, Separator (includes Spigot And Ice Guide) (Replaces: W10353552) |
|
$ 166.29 | |||||
| 7 | W11227371 | Assembly, Spigot Body (Replaces: 2316647) |
|
$ 136.38 | |||||
| 8 | WPW10435760 | Guide, Ice (Replaces: W10339578) |
|
$ 23.94 | |||||
| 9 | W11045974 | Dispenser, Tray (black Stainless) |
|
$ 63.47 | |||||
| 10 | W11045966 | Tray, Dispenser Slide (black Stainless) |
|
$ 63.37 | |||||
| 11 | W10254277 | Cover, Board |
|
- | |||||
| 12 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 | ||||
| 13 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 |
