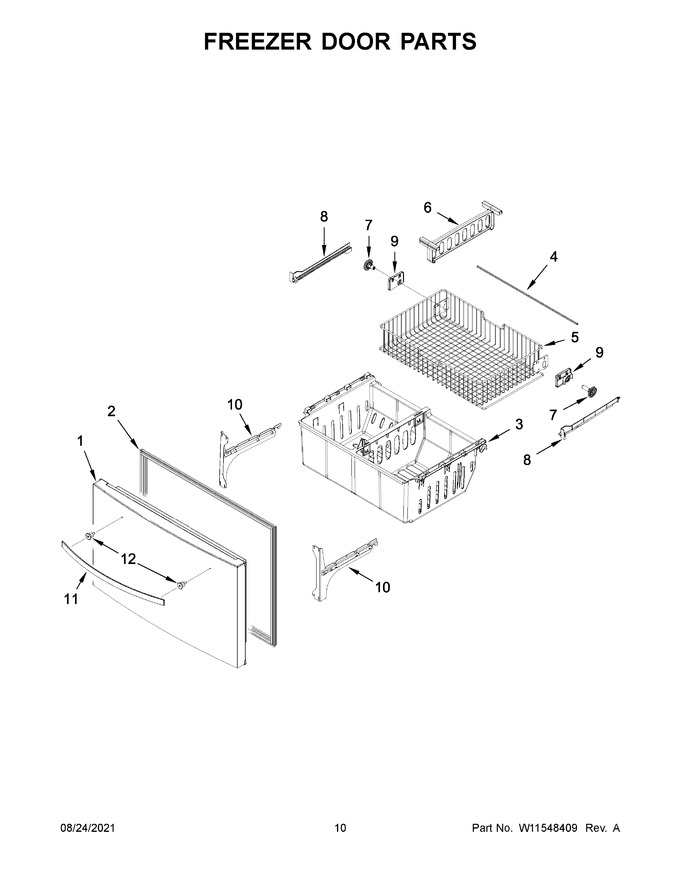

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11104489		Door, Freezer (black Stainless)   (Replaces: W10920749)				$ 1,370.29
2	WPW10436253		Gasket, Door (black)   (Replaces: W10436253)				$ 360.89
3	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 181.18
4	W11173556		Shaft, Rack   (Replaces: W10802333)				$ 32.38
5	W11218042		Basket, Upper   (Replaces: W11115237)				$ 203.43
6	W10146439		Divider, Upper Basket				$ 32.66
7	WPW10474716		Gear (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
8	W11489993		Rack, Side (left Hand)   (Replaces: W11309374)				$ 23.46
9	W10348259		Mount, Gear (left Hand)				$ 89.87
10	WPW10330991		Bracket, Door Slide (left Hand)   (Replaces: W10330991)				$ 164.31
11	W11125509		Handle, Door (black Stainless)   (Replaces: W11101977)			Immediately	$ 190.44
12	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.45
10A	WPW10330993		Bracket, Door Slide (right Hand)   (Replaces: W10330993)				$ 166.09
7A	WPW10474715		Gear (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
8A	W11489994		Rack, Side (right Hand)   (Replaces: W11309377)				$ 23.46
9A	W10348260		Mount, Gear (right Hand)				$ 89.90

    View Diagram in Separate Window       Print Part List
