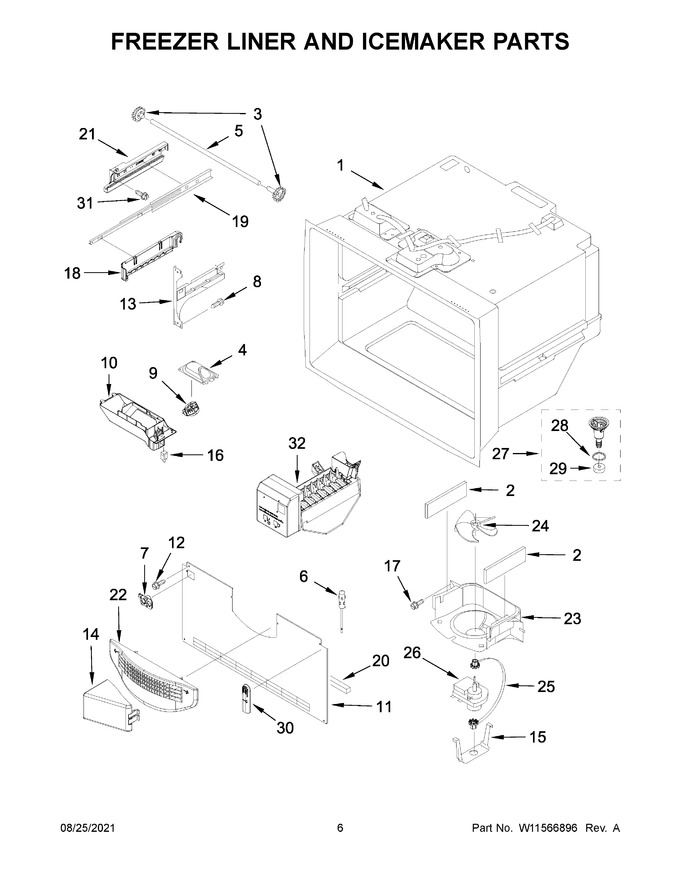

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 8.06 | ||||
| 3 | 12002497 | Gear |
|
Immediately | $ 22.51 | ||||
| 4 | W11702858 | Housing, Freezer Light (Replaces: 12476401V) |
|
$ 90.11 | |||||
| 5 | W11028221 | Shaft, Rack (Replaces: W10802332) |
|
$ 33.24 | |||||
| 6 | W10316760 | Thermistor (Replaces: 12791417SP) |
|
Immediately | $ 72.91 | ||||
| 7 | W11261606 | Guide, Fill Tube |
|
- | |||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 9 | W11602886 | Light Module, Led (Replaces: W11251749) |
|
$ 42.63 | |||||
| 10 | W11712699 | Module, Freezer Light (Replaces: W10119832) |
|
$ 92.02 | |||||
| 11 | W11331291 | Cover, Evaporator |
|
$ 58.97 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 13 | WPW10330994 | Bracket, Door (left Hand) (Replaces: W10330994) |
|
Immediately | $ 169.02 | ||||
| 14 | W10157765 | Diverter, Air |
|
$ 92.85 | |||||
| 15 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 17 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 18 | W10119848 | Cradle, Basket (left Hand) |
|
$ 49.78 | |||||
| 19 | W11658403 | Slide, Drawer (Replaces: 13055901) |
|
Immediately | $ 225.25 | ||||
| 20 | W11159728 | Gasket (Replaces: A3189396) |
|
Immediately | $ 28.86 | ||||
| 21 | WPW10544403 | Adapter, Side (left Hand) (Replaces: W10544403) |
|
$ 138.08 | |||||
| 22 | WPW10175909 | Grille, Freezer Air (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evaporator Fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W10121318 | Grommet |
|
$ 50.80 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 78.75 | ||||
| 27 | W10815413 | Assembly, Drain Funnel (Replaces: W10662407) |
|
Immediately | $ 51.50 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 29 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.78 | |||||
| 30 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 8.21 | |||||
| 31 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 8.55 | ||||
| 32 | W11692158 | Assembly, Icemaker (complete) (Replaces: W11456888) |
|
Immediately | $ 285.48 | ||||
| 13A | WPW10330995 | Bracket, Door (right Hand) (Replaces: W10330995) |
|
Immediately | $ 340.61 | ||||
| 18A | W10119849 | Cradle, Basket (right Hand) |
|
Immediately | $ 88.00 | ||||
| 21A | WPW10544404 | Adapter, Side (right Hand) (Replaces: W10544404) |
|
$ 140.88 | |||||
| NI | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| NI | W10196195 | Harness, Lights (freezer) |
|
$ 137.22 |
