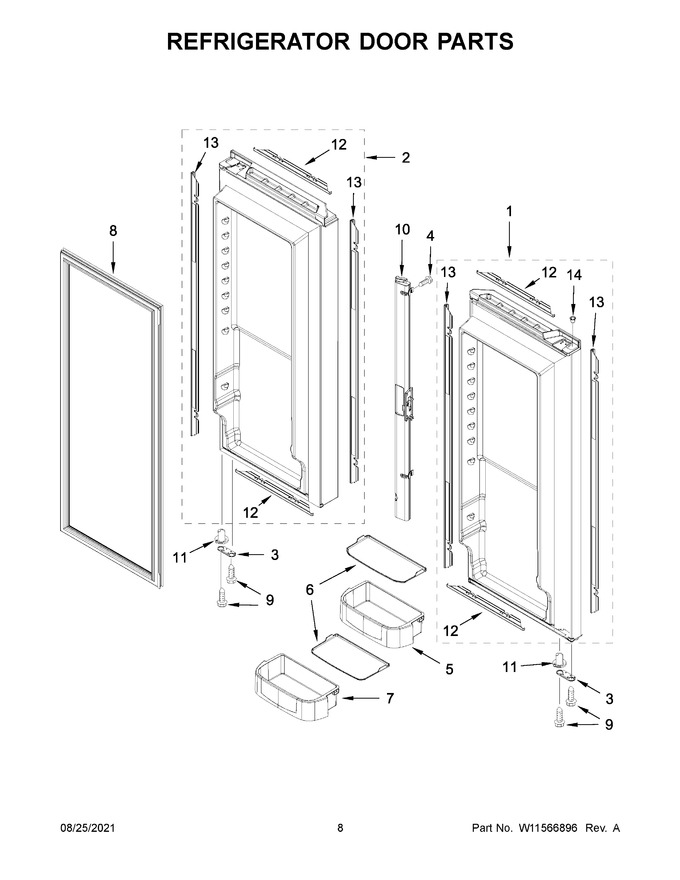

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13094748BQ | Door, Left (includes Trim) (Replaces: 12894248B) |
|
$ 1,198.21 | |||||
| 2 | 13094740BQ | Door, Right (includes Trim) (Replaces: 12894236B) |
|
$ 1,216.03 | |||||
| 3 | W10153126 | Stop, Door (black) |
|
$ 14.82 | |||||
| 4 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 5 | WPW10119841 | Bucket, Medium (Replaces: W10119841) |
|
Immediately | $ 90.23 | ||||
| 6 | W11510593 | Gripper, Medium (Replaces: W10450018) |
|
Immediately | $ 16.60 | ||||
| 7 | WPW10119846 | Bucket, Gallon (Replaces: W10119846) |
|
Immediately | $ 81.84 | ||||
| 8 | W10830047 | Gasket, Door (black) |
|
Immediately | $ 200.20 | ||||
| 9 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.95 | ||||
| 10 | W11177241 | Mullion, Door (black) (Replaces: W11128562) |
|
Immediately | $ 178.66 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 12 | W10130132 | Trim, Top And Bottom |
|
$ 123.17 | |||||
| 13 | WPW10130136 | Trim, Side (Replaces: W10130136) |
|
$ 168.68 | |||||
| 14 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 6A | W11510594 | Gripper, Gallon (Replaces: W10450019) |
|
$ 19.06 |
